Little Giant 514530 16EH-CIM Submersible Effluent Pump

SKU: 105149

Save 54% · Retail: $1,639.00

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Little Giant 514530

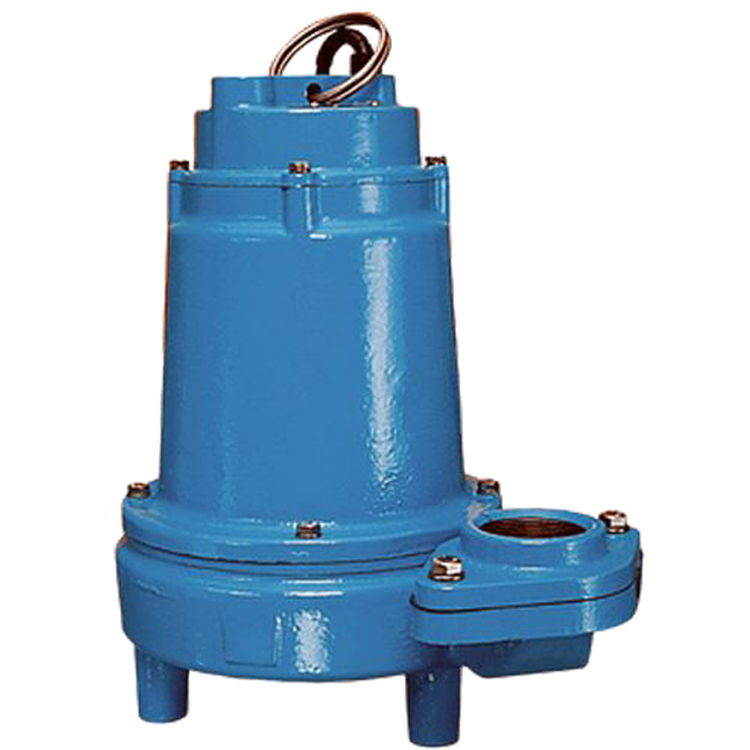

The Little Giant 514530 16EH-CIM Submersible Effluent Pump is designed for dewatering, water transfer, and effluent wastewater removal. It is highly recommended for use in basins or lift stations and it can pump sewage and other non-corrosive liquids. The pump has a discharge size of 2" FNPT (51 mm) in diameter so it can handle solids of up to ¾" (19mm) in diameter. It has a 1/2 hp motor. This Little Giant 514530 16EH-CIM Submersible Effluent Pump can pump up to 90 GPM at 30' head pressure and up to 30 GPM at 60' head pressure. It needs a 3-phase control panel for both automatic or manual operation. It includes a 20' cord. The needed voltage to run this pump is 208-240V three-phase. More details are available in the specification sheets. The Little Giant 514530 16EH-CIM Submersible Effluent Pump is covered by a Limited Warranty for a period of 24 months from date of installation or 30 months from date of manufacture, whichever occurs first. This product proudly bears the CSA mark and is recognized for meeting the required environmental performance standards. Little Giant and its parent company, Franklin Electric, have been making pumps for over 70 years. The quality, durability and dependability of their products have made them a world leader in pumps of virtually every variety.

Product Details

Manufacturer: Little Giant
Mpn # 514530
Weight 82.00 lbs.

Product Features

  • 208-240 Vac 60 Hz 3 Phase 20 Foot Cord
  • Ul / Csa Listed
  • 1 Horse Power
  • 90 Gallon Per Minute At 30 Foot Rise 81 Foot Max Height
  • Handles Liquids And Solid Waste Materials Up To 3/4
  • Cast Iron Pump Housing With Protective Epoxy Coating For Corrosion Resistance
  • Oil-filled motor housing for lifetime lubrication and rapid heat dissipation
  • Stainless Steel Screws, Bolts And Lifting Ring
  • Secondary Exclusion Seal To Help Protect Mechanical Seal
  • High Speed, 3450 Rpm, 1 Hp, Ball Bearing Motor And Thermal Overload Protection
