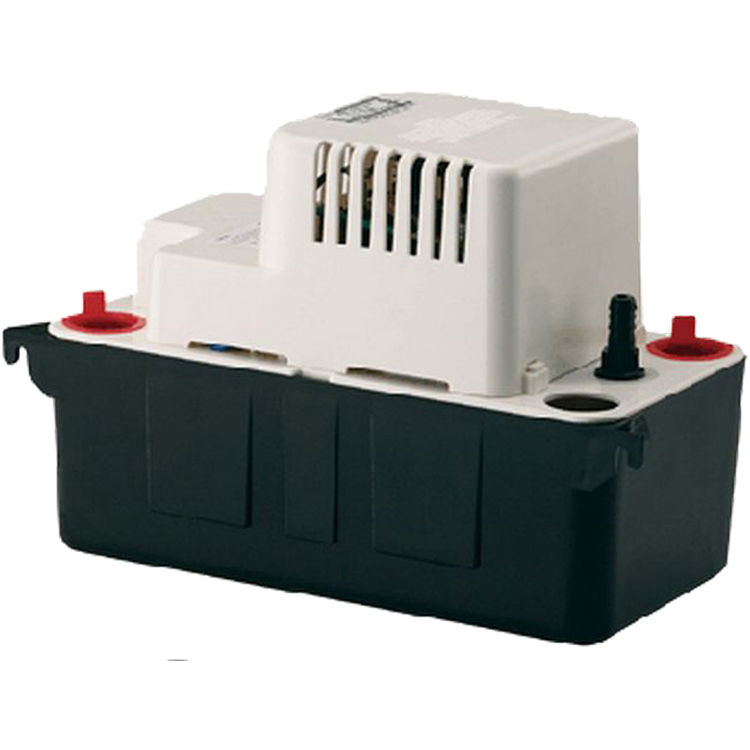

Little Giant VCMA-20UL 554421 Automatic Condensate Removal Pump

SKU: 105265

Save 46% · Retail: $97.00

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Little Giant 554421

The Little Giant VCMA-20UL 554421 Automatic Condensate Removal Pump is designed to remove the condensate from an air conditioner when drainage by gravity is not possible. It is also useful for high efficiency condensing furnaces and boilers. The pump has a discharge size of 3/8” OD Barbed. It has a 1/30 hp high performance motor. This Little Giant VCMA-20UL 554421 Automatic Condensate Removal Pump has a ½ gallon tank capacity and can pump up to 80 GPH at 1' head pressure and up to 48 GPH at 10’ head pressure. It comes with a 6’ cord. The needed voltage to run this pump is 115V single phase. It also includes a removable 3/8” barbed check valve. It has 3 inlet drain holes. More details are available in the specification sheets. The Little Giant VCMA-20UL 554421 Automatic Condensate Removal Pump is covered by a Limited Warranty for a period of 12 months from date of purchase. This product proudly bears the CSA mark and is recognized for meeting the required environmental performance standards. Little Giant and its parent company, Franklin Electric, have been making pumps for over 70 years. The quality, durability and dependability of their products have made them a world leader in pumps of virtually every variety.

Product Details

Manufacturer: Little Giant
Mpn # 554421
Weight 5.00 lbs.

Product Features

  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • Models equipped with safety overflow switch include two 5 switch lead wires
  • 3/8 O.D. barbed discharge adapter with built-in check valve
  • Three 1-1/8 diameter inlet openings (two fitted with removable cap plug)
  • Thermally protected, fan cooled motor
  • Built-in wall mount tabs on tank
  • Removable pump float locking tab for safety during transportation (remove at time of installation)



4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers


Hi! Thank you for your interest in our Little Giant VCMA-20UL 554421 automatic condensate removal pump. This condensate removal pump doesn't come with a safety switch but it may be purchased as an option. Here is a list of condensate removal pump with safety switches: Little Giant VCMA-20 554435, Little Giant VCMA-20ULS 554425, Little Giant VCMA-20ULS 554455, and Little Giant VCMA-20 554461 in case you're interested. Please click this VCMA-20ULS series to find the said products. If you wish to purchase this product, feel free to click Add to Cart, enter your zip code and you're all set. Happy shopping!
