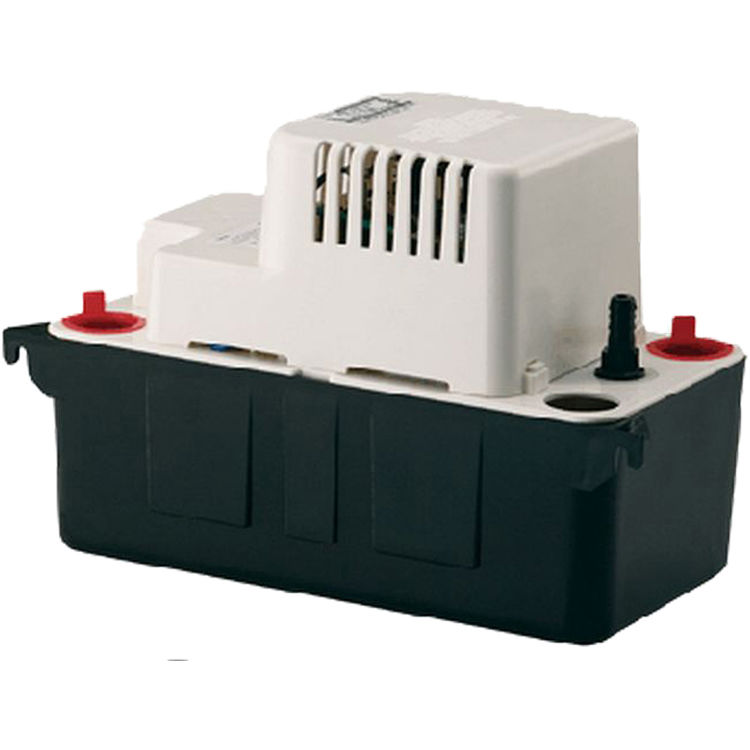

Little Giant 554425 Little Giant 554425 Automatic Condensate Removal Pump, 1/30 HP, 115v, 60 Hz, 1.5 A, Model VCMA-20ULS

Little Giant 554425 Automatic Condensate Removal Pump, 1/30 HP, 115v, 60 Hz, 1.5 A, Model VCMA-20ULS

SKU: 105266
$67.20/ea
 Free Shipping!
Save 52% · Retail: $140.00

  Available to Ship in 4-5 weeks




Ships From Price Qty
Austin Texas Warehouse
Ships in 5-7 Days
$67.2/ea 17
Sikeston Missouri Warehouse
Ships in 5-7 Days
$67.2/ea 21
Order From Manufacturer
Available to Ship in 4-5 weeks
$67.20/ea

About the Little Giant 554425

The Little Giant Automatic Condensate Removal Pump, 1/30 HP, 115v, 60 Hz, 1.5 A (55442, VCMA-20ULS) is designed to remove the condensate from an air conditioner when drainage by gravity is not possible. It is also useful for high-efficiency condensing furnaces and boilers. The pump has a discharge size of 3/8” OD Barbed. It has a 1/30 hp high-performance motor.

This pump has a ½ gallon tank capacity and can pump up to 80 GPH at 1' head pressure and up to 48 GPH at 10’ head pressure. It features a safety switch. It comes with a 6’ cord. The needed voltage to run this pump is 115V single phase. It also includes a removable 3/8” barbed check valve. It has 3 inlet drain holes. More details are available in the specification sheets.

The Little Giant 554425 is covered by a Limited Warranty for a period of 12 months from the date of purchase. This product proudly bears the CSA mark and is recognized for meeting the required environmental performance standards.

Manufacturer: Little Giant
Mpn # 554425
Weight 5.40 lbs.
  • 1/2 gallon collection tank
  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • Models equipped with safety overflow switch include two 5 switch lead wires
  • 3/8 O.D. barbed discharge adapter with built-in check valve
  • Three 1-1/8 diameter inlet openings (two fitted with removable cap plug)
  • Thermally protected, fan cooled motor
  • Built-in wall mount tabs on tank
  • Removable pump float locking tab for safety during transportation (remove at time of installation)
