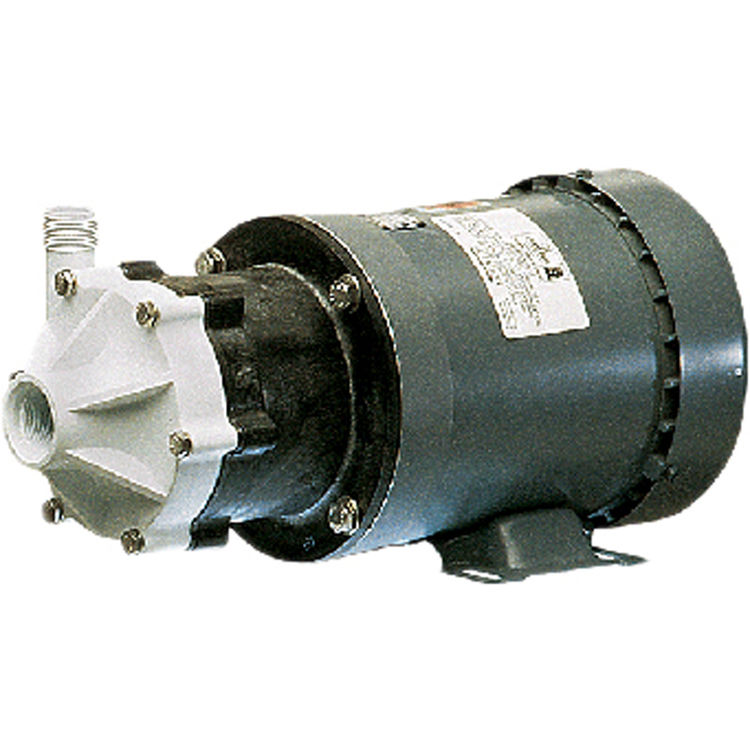

Little Giant 586504 TE-6-MD-SC Chemical Pump

SKU: 105626
Save 50% · Retail: $918.00

   Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Little Giant 586504

The Little Giant 586504 TE-6-MD-SC Chemical Pump, a pre-assembled magnetic drive industrial pump, is non-submersible, and is for in-line use. It is suitable for the movement of moderately corrosive solvents, acids, alkalis, and other chemicals and solutions that are compatible with the material that was used to make the pump. The pump has an intake size of 1” FNPT and a discharge size of 3/4” MNPT. It has a 1/2 hp motor. This Little Giant 586504 TE-6-MD-SC Chemical Pump can pump up to 38 GPM at 5’ head pressure and up to 21.7 GPM at 40’ head pressure. This chemical pump can handle fluids with a specific gravity of up to 1.1 and with temperatures of up to 135 °F. It includes a conduit box that must be field-wired. The voltage needed to run this pump is 115V single phase. You also have the option to run it using 230V. It features a totally enclosed, fan cooled, split phase motor that is thermally protected. More details are available in the specification sheets. The Little Giant 586504 TE-6-MD-SC Chemical Pump is covered by a limited warranty of 12 months from date of purchase. This product proudly bears the UR and CSA mark and is recognized for meeting the required environmental performance standards. Little Giant and its parent company, Franklin Electric, have been making pumps for over 70 years. The quality, durability and dependability of their products have made them a world leader in pumps of virtually every variety.

Product Details

Manufacturer: Little Giant
Type: Chemical Resistant
Mpn # 586504
Weight 31.00 lbs.

Product Features

  • 115-230 Vac 50/60 Hz Single Phase
  • 1/2 Horse Power
  • 2280 Gallon Per Hour At 5 Foot Rise 51 Foot Max Height
  • Thermally Protected, Totally Enclosed, Fan Cooled, Split Phase Motor
  • Ball Bearings
  • Conduit box (must be field wired)
  • Specific Gravity To 1.1
  • Fluid Temperature To 135F
  • Ambient Air Temperature To 77F
