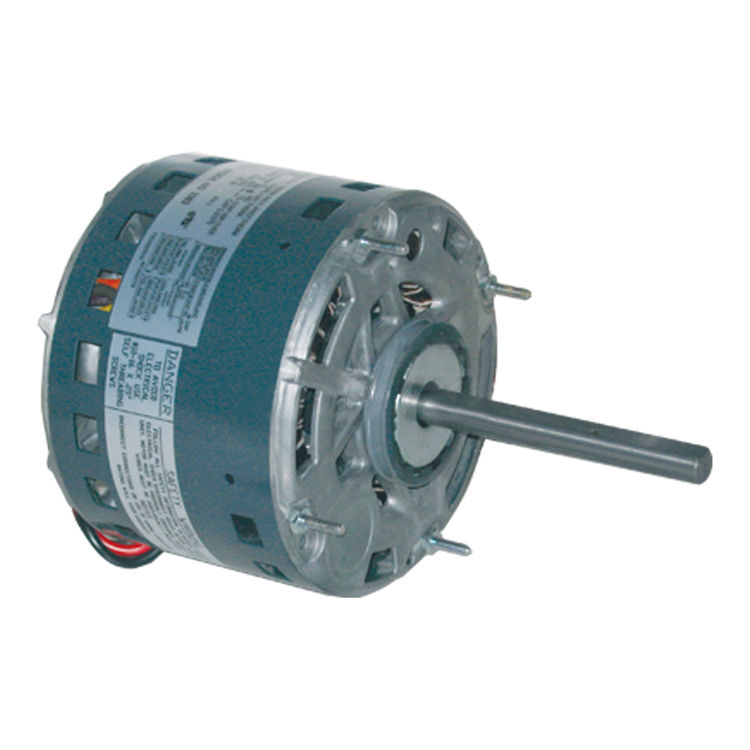

Mars 03386 Mars 03386 PSC Direct Drive Motor, 1/3HP, 208-230V, 1075RPM, REV ROT

Mars 03386 PSC Direct Drive Motor, 1/3HP, 208-230V, 1075RPM, REV ROT

SKU: 251145
$ 176.25 / ea
Save 47% · Retail: $334.87

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 3-4 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks
$176.25/ea

About the Mars 03386 PSC Direct Drive Motor, 1/3HP, 208-230V, 1075RPM, REV ROT

Whether you are a homeowner or commercial repair man, Mars is a great solution. Order this Mars 03386 PSC Direct Drive Motor, 1/3HP, 208-230V, 1075RPM, REV ROT. Chat us up if you have questions about this part or the installation process. A direct drive motor is a rotary or linear configuration that directly connects the load to the motor. PSC stands for permanent split capacitor, and it operates at a constant speed.

Manufacturer: Mars
Mpn # 03386
Weight 13.10 lbs.
  • Enclosure: Open
  • H.P. (Max.): 1/3
  • Voltage: 208-230
  • Speeds: 2
  • Hz: 60/50
  • Rotation: CW/CCW
  • RPM Range: 1075
  • NEMA Frame Size: 48
  • Phase: Single
  • Standards: UL/CSA
  • FLA: 2.9
  • Mount: 2.25 Resilient Ring
  • Bearing: Sleeve
  • Shaft Length Inches: 4
  • Shaft Dia Inches: 1/2
  • Thermal Protection: Yes
  • Ambient Deg C: 40
  • Ins. Class Class: B
  • Capacitor Included: No
  • Capacitor Rating: 5/370
