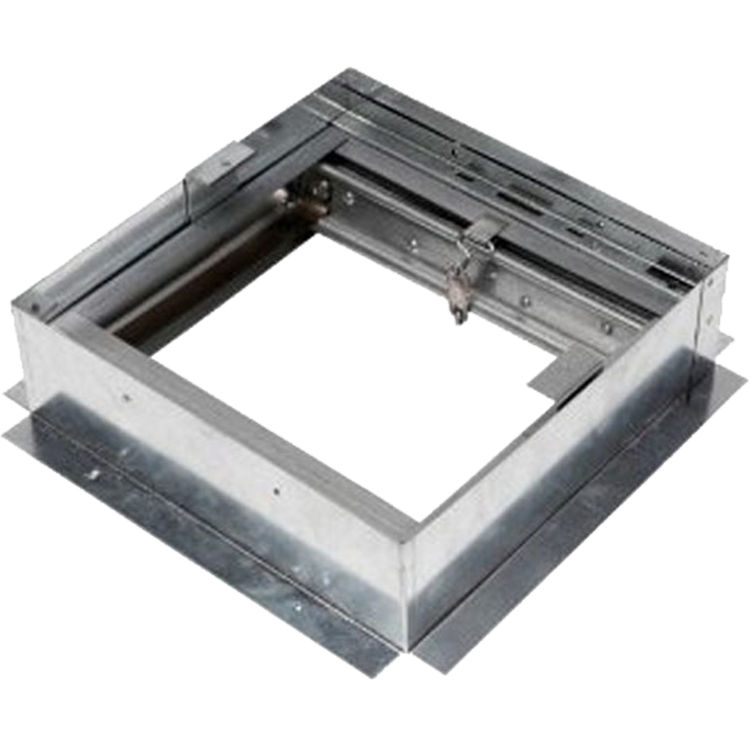

Panasonic PC-RD05C4 Ceiling Radiation Damper

SKU: 461847
   based on 1 Reviews
$60.29/ea Free Shipping!
Save 36% · Retail: $94.50

In Stock and Ready to Ship!
More Buying Options


Ships From Price Qty
Georgia Warehouse
Ships in 1-3 Days
$60.29/ea 61
California Warehouse
Ships in 1-3 Days
$68.93/ea 3
Order From Manufacturer
Available to Ship in 4-5 weeks
$60.29/ea

About the Panasonic PC-RD05C4

The Panasonic PC-RD05C4 Ceiling Radiation Damper is designed to help meet fire codes that may require that your ventilation fan be installed in a fire rated floor/ceiling or a roof/ceiling assembly with a specially classified and tested radiation damper. In the case of a fire the Panasonic PC-RD05C4 Ceiling Radiation Damper is designed to close to prevent the spread of heat and fire. The Panasonic PC-RD05C4 Ceiling Radiation Damper is designed to protect ceiling penetrations in one, two, or three hour fire-rated floor/ceiling and roof/ceiling designs. The Panasonic PC-RD05C4 Ceiling Radiation Damper meets UL Classified 555C and National Fire Protection Association NFPA-90A.

Product Details

Product:
Type: Vent Fan
Style: Fan Kit
Mpn # PC-RD05C4
Weight 1.00 lbs.

Product Features

  • UL Classification (UL Standard 555C): Yes, for use 1, 2 or 3 hour fire-rated floor/ceiling and roof/ceiling designs
  • Dimensions (H x W x D): 10-1/8" x 10-1/8" x 3-1/2"
  • Approved for use with: FV-05-11VK1, FV-05-11VKS1, FV-11-15VK1, FV-05-11VKL1, FV-05-11VKSL1, FV-11-15VKL1, FV-05VK3, FV-08VK3, FV-11VK3, FV-08VKS3, FV-13VKS3, FV-08VKM3, FV-13VKM3, FV-08VKSE3, FV-08VKME3, FV-08VKL3/4,FV-11VKL3/4, FV-08VKSL3/4, FV-13VKSL3/4, FV-08VKML3/4, FV-13VKML3/4, FV-05VQ5, FV-08VQ5, FV-11VQ5, FV-15VQ5, FV-08VQL5/6, FV-11VQL5/6, FV-15VQL5/6, FV-08VQC5, FV-11VQC5, FV-08VQCL5/6, FV-11VQCL5/6, FV-08VF2, FV-11VF2, FV-05VFM2, FV-08VFM2, FV-05VS1/3, FV-08VS1/3, FV-10VS1/3, FV-08VSL2/3, FV-10VSL2/3
  • 165 Degrees Fahrenheit Fusible LinkW: Yes
  • Approved For: WhisperGreen, WhisperGreen-Lite, WhisperCeiling, WhisperLite, WhisperSense, WhisperSense-Lite, WhisperWelcome, WhisperFit, WhisperValue
  • Thermal Fabric: High Temperature, Non-Asbestos, Reinforced Fiber
  • Galvanized Steel Frame: Yes
  • National Fire Protection Association (NFPA): Panasonic radiant dampers assembled together with Panasonic ventilation fans, meet or exceed NFPA-90A
  • Installation: Will fit a wood frame ceiling or a T-bar ceiling
  • Galvanized Steel for Long Life: Yes
  • Warnock Hersey Classifed: Yes
