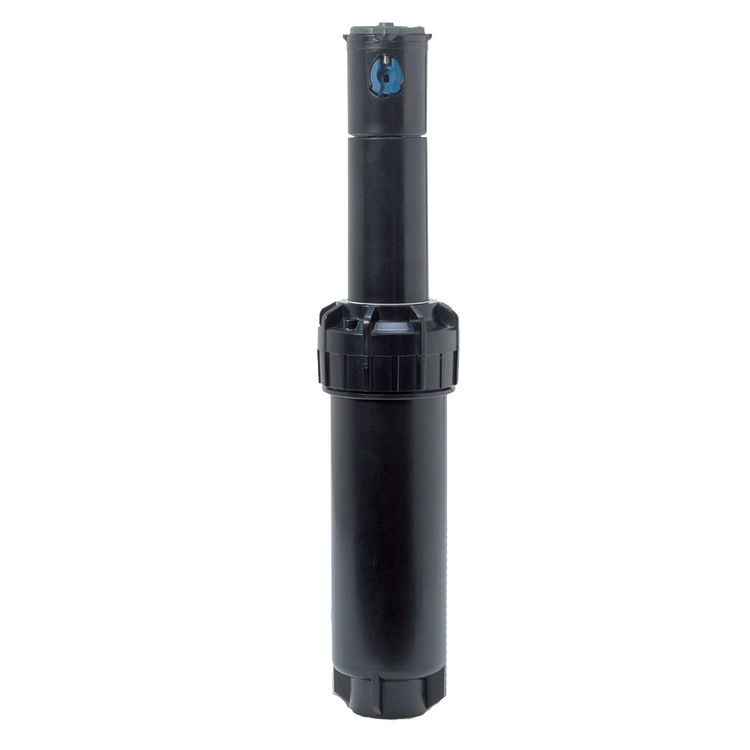

The Rain Bird 5004PC 4" Full-Circle Pop-Up Sprinkler

SKU: 7283
Save 30% · Retail: $12.75

In Stock and Ready to Ship!
More Buying Options

Ships From Price Qty
Nevada Warehouse
Ships in 3-4 Days
$8.88/ea 105
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Rainbird 5004PC

The Rain Bird 5004PC 4" Full-Circle Pop-Up Sprinkler. Rain Bird is the sprinkler industries leading manufacturer of irrigation products and services. For the last 80 years Rain Bird has offered the widest range of irrigation products for farms, golf courses, commercial, and residential applications. The Rain Bird 5004PC is a 4" Full-Circle Pop-Up Sprinkler. This Sprinkler head features a standard rubber cover, and a reversing/part circle coverage. The convenient arc adjustment allows users to customize the spray setting and shut-off the sprinkler head using a flat blade screwdriver while the system is operating. This feature allows users to troubleshoot for leaks by turning off all heads in a certain zone. This Sprinkler head is ideal for large yards.

Product Details

Product: Rotor
Manufacturer: Rainbird
Style: Adjustable Circle
Connection Type: Threaded
Length: 25' - 50'
Mpn # 5004PC
Weight 0.69 lbs.

Product Features

  • 3/4" (20/27) NPT female bottom threaded inlet
  • Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
  • Full circle only adjustment 360 Degrees
  • Heavy-duty cover assembly for extra durability.
  • Heavy-duty retract spring assures positive pop-down.
  • Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
  • In-stem pressure regulator (PRS) reduces operating pressure to 45 psi (3,1 bar) for optimal nozzle performance
  • Maintenance-free design can be easily retrofitted into existing 5000/5000 Plus, T-Bird and Hunter PGP (using UPG model) rotor cases without digging up the entire body
  • Optional Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance.
  • Optional Seal-A-Matic (SAM) check valve which prevents water from pooling at the base of slopes or hillsides.
  • Optional stainless steel riser helps deter vandalism on public turf areas (4" and 6" 5000 Plus / 5000 Plus PRS only)
  • 40 - 360 Degrees arc rotation and reversing full circle rotation in one.
  • Overall body height: Shrub: 7 3/4" (19,7cm) 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm)
  • Pop-up height: Shrub; 4" (10,2 cm); 6" (15,2 cm); 12" (30,5 cm)
  • Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
  • Pressure: 25-65 psi (1,7 to 4,5 bar)
  • Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction.
  • PRS saves water by: Eliminating head-to-head pressure variations Eliminating misting due to high pressure Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
  • Radius adjustment screw allows up to 25% radius reduction without changing nozzles.
  • Radius may be reduced up to 25% with radius reduction screw
  • Radius: 25 to 50 feet (7,6 to 15,2 m)
  • 5000, 5000 Plus and 5000 Plus PRS Series Rotors are available in 4", 6", 12", Shrub, and Stainless Steel (5000 Plus/5000 Plus PRS 4" & 6" only) models.
  • Rain Curtain Nozzles.
  • Reinforced flow path for additional side load strength.
  • Reversing full and part circle adjustment 40 Degrees-360 Degrees
  • Slip clutch mechanism for quick adjustment on installation.
  • Standard rubber cover for extra protection. 5000 Plus/5000 Plus PRS feature a green cover while the 5000 features a black cover.
  • The 5000 Plus features a Flow Shut-Off device to stop the flow of water to a particular head while the system is still in operation.
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver.
  • True 4" (10 cm), 6" (15,2 cm) and 12" (30,5 cm) pop-up (measured from the cover to the nozzle).
  • Additional O-rings and seals for extra protection in "gritty" water.
  • Eliminating head-to-head pressure variations
  • Eliminating misting due to high pressure
  • Exposed surface diameter: 1 5/8" (4,1 cm)
  • Faster maintenance with a new self-cleaning arc adjustment screw.
  • Five-year trade warranty.
