Hit 704 4" Pop-Up Sprinkler Spray Head

SKU: 7439
   based on 1 Reviews
Save 35% · Retail: $3.15

In Stock and Ready to Ship
More Buying Options

Ships From Price Qty
Nevada Warehouse
Available to Ship in 3-5 days
$2.06/ea 10
Order From Manufacturer
Available to Ship in 1-2 weeks

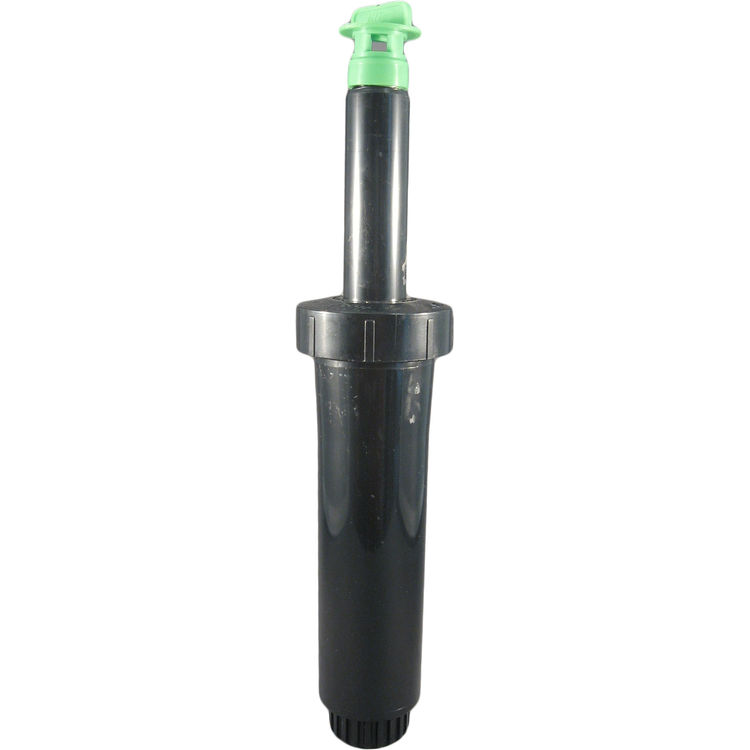

About the Hit 704

The Hit 704 is part of the 700 series pop-up sprinklers. It has a body height of 6 inches and a pop-up height of 4 inches with an exposed surface diameter of 2 inches. This pop-up is constructed of high-quality ABS material with a durable stainless steel spring. It can also be adjusted to the desired spray pattern, thanks to its ratchet feature. For extra assurance, this easy-to-install Hit 704 is equipped with a heavy-duty molded wiper seal. There is also an optional purple cap, and check valve (both sold separately). This spray head, which has a 1/2" inlet, has an operating pressure of 15-70 PSI and a recommended working pressure of 30 PSI. Please note that the Hit 704 is available in both Male and Female thread.

Product Details

Product: Pop-Up Sprayer
Manufacturer: Hit Products Corp
Faucet Part Feature: Body
Connection Type: Threaded
Mpn # 704
Weight 0.18 lbs.

Product Features

  • Heavy Duty internally supported wiper seal
  • 4" pop up height
  • Patented lateral flushing flush plug
  • High impact virgin ABS plastic construction
  • Stainless steel retraction spring
  • Spring-loaded ratchet on all models
  • Available with female or male threaded pistons
  • Operating range 15-70 PSI
  • Easy service from top of head


Rated 5 out of 5 based on 1 reviews

 Rated 5 by Hsiao-Kuo W.

Originally posted on PlumbersStock Mar/2018

Questions & Answers


Hello! Thank you for inquiring about our Hit 704 4" pop-up sprinkler spray head. According to Hit, the female style 4" pop-up is the 704F. It is not yet posted on our website but If you're interested in purchasing the 704F, you may call one of our customer support specialists at 435-868-4020. Have a great day!


Thank you for your questions about the Hit 704 4" Pop-Up Sprinkler Spray Head. Unfortunately, this specification sheet doesn't include the information you requested. We have contacted Hit Products Corporation and hope to hear from them soon. Please check back in with us at a later time, or leave your email address below so we can contact you as soon as we have the answer. Thank you for choosing to help you find answers to your plumbing questions.


Hi! This is in response to your inquiry about the Hit 704 4" Pop-Up Sprinkler Spray Head. According to Hit, this spray head's performance, pattern, distance, and flow rate are all dependent on your chosen nozzle. Spacing of heads is recommended to be whatever the radius of the chosen nozzle is (assuming your system pressure is 30 psi). FYI, fixed arc patterns are superior to any adjustable arc patterns relative to the distribution of water. If you need further clarification, please don't hesitate to post your question. You may also visit our Sprinkler Design Center to get free assistance in creating an efficient irrigation system for your lawn and garden. Thank you for letting help you find answers to your questions.
