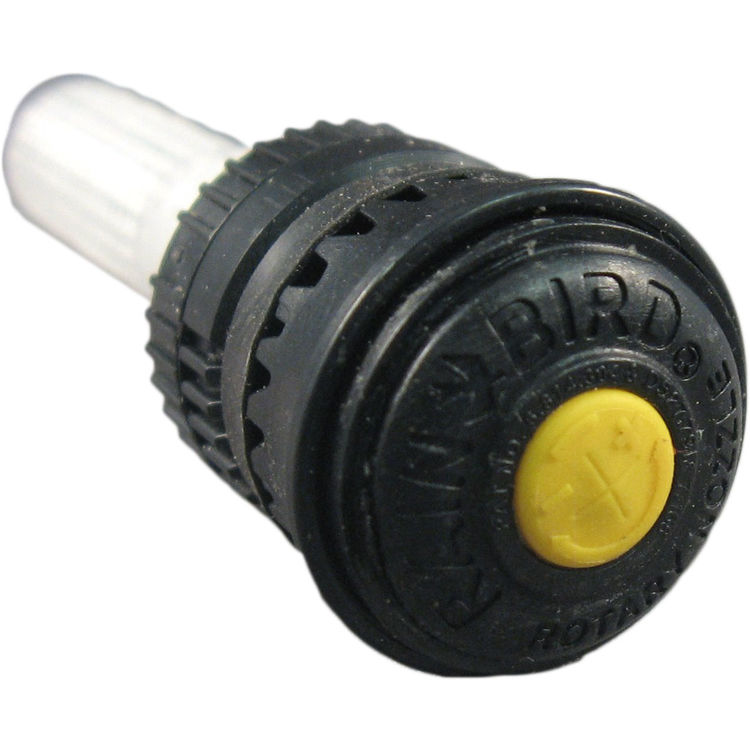

Rainbird R1318Q Quarter-Circle Rotary Nozzle (13'-18')

SKU: 41494
Minimum Quantity: 1

$4.63/ea
Save 34% · Retail: $7.00

In Stock and Ready to Ship!
More Buying Options


Ships From Price Qty
Nevada Warehouse
Ships in 3-4 Days
$4.63/ea 21

About the Rainbird R1318Q

Rainbird R1318Q 13'-18' Quart Circle Rotary Nozzle. The Rain Bird R1318Q is a 13' - 18' Quarter-Circle Rotary Nozzle for use with any Rain Bird Pop-Up Rotary Sprinkler. This nozzle features a low precipitation rate that reduces run-off and erosion, multiple rotating streams that uniformly distribute water throughout the radius range, and a pressure range of 20 - 55 PSI with no misting or fogging at high pressures.

Product Details

Product:
Manufacturer: Rainbird
Type: Accessory
Style: Quarter Circle
Mpn # R1318Q
Shipping Dimensions 0.9" x 0.9" x 0.9"
Weight 0.03 lbs.

Product Features

  • Color-coded radius adjustment plugs for easy identification
  • Rain Bird Rotary Nozzles offer color-coded top plugs to help you quickly identify the arc/pattern
  • Spacing: 13' to 24' (based on zero wind conditions)
  • Stainless steel radius reduction screw allows reduction down to 13' on the R13-18 and to 17' on the R17-24 to accommodate varying landscape needs
  • Ultimate retrofit solution, with a low flow rate and an expanded radius of throw solve existing spray zone inefficiencies caused by diminished pressure or stretched spacing.
  • With approximately 60% less flow than conventional spray nozzles, Rotary Nozzles allow more heads per zone, reducing overall system complexity and cost
  • Efficient water distribution, multiple rotating streams deliver close-in watering and even coverage throughout the radius range; The low precipitation rate significantly reduces wasteful run-off and erosion
  • Fewer zones, faster installs, System complexity and cost are reduced because more heads can be installed per zone. Rotary Nozzles can also be zoned with Rain Bird 5000/5000 Plus MPR Rotor Nozzles.
  • Low precipitation rate, 0.60 in/hr (15,2 mm/hr), reduces run-off and erosion
  • Maintains highly efficient performance throughout the 20-55 PSI pressure range, with no misting or fogging at high pressures
  • Matched precipitation rate across radii and pattern simplify the design process
  • Matched precipitation rate with Rain Bird 5000/5000 Plus MPR Rotor Nozzles allow MPR irrigation designs from 13' to 35'
  • Multiple, rotating streams uniformly distribute water throughout the radius range
  • Pressure range: 20-55 PSI
