Rainbird R1724F 17'-24' Full Circle Rotary Nozzle

SKU: 41485

$4.29/ea
Save 39% · Retail: $7.00

In Stock and Ready to Ship
More Buying Options


Ships From Price Qty
Spring Valley Nevada Warehouse
Ships in 4-6 days
$4.29/ea 15

About the Rainbird R1724F

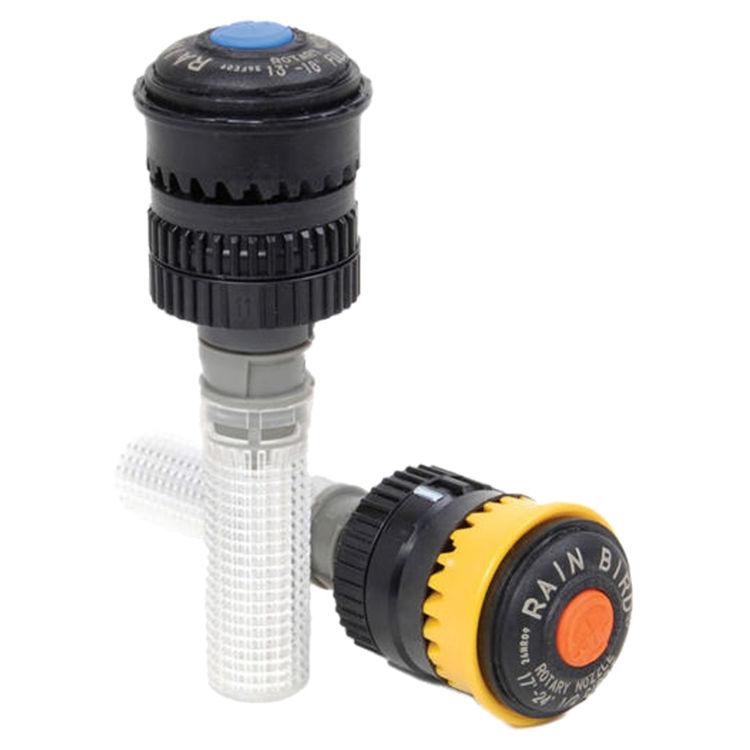

Rainbird R1724F 17'-24' Full Circle Rotary Nozzle. The Rain Bird R1724F is a 17' - 24' Full-Circle Rotary Nozzle for use with any Rain Bird Pop-Up Rotary Sprinkler. This nozzle features a low precipitation rate that reduces run-off and erosion, multiple rotating streams that uniformly distribute water throughout the radius range, and a pressure range of 20 - 55 PSI with no misting or fogging at high pressures.

Product Details

Style: Full Circle
Manufacturer: Rainbird
Mpn # R1724F
Weight 0.03 lbs.

Product Features

  • Color Coded Radius Adjustment Plugs for Easier Identification
  • Rain Bird Rotary Nozzles offer color-coded top plugs to help you quickly identify the arc/pattern.
  • Spacing: 13' to 24' (based on zero wind conditions)
  • Stainless steel radius reduction screw allows reduction down to 13' on the R13-18 and to 17' on the R17-24 to accommodate varying landscape needs.
  • Ultimate retrofit solution-low flow rate and an expanded radius of throw solve existing spray zone inefficiencies caused by diminished pressure or stretched spacing.
  • With approximately 60% less flow than conventional spray nozzles, Rotary Nozzles allow more heads per zone, reducing overall system complexity and cost.
  • Efficient water distribution-multiple rotating streams deliver close-in watering and even coverage throughout the radius range. The low precipitation rate significantly reduces wasteful run-off and erosion
  • Fewer zones, faster installs-System complexity and cost are reduced because more heads can be installed per zone. Rotary Nozzles can also be zoned with Rain Bird 5000/5000 Plus MPR Rotor Nozzles.
  • Low precipitation rate-0.60 in/hr (15,2 mm/hr)-reduces run-off and erosion.
  • Maintains highly efficient performance throughout the 20-55 psi pressure range, with no misting or fogging at high pressures.
  • Matched precipitation rate across radii and pattern simplify the design process.
  • Matched precipitation rate with Rain Bird 5000/5000 Plus MPR Rotor Nozzles allow MPR irrigation designs from 13' to 35'.
  • Multiple, rotating streams uniformly distribute water throughout the radius range.
  • Pressure range: 20-55 psi
