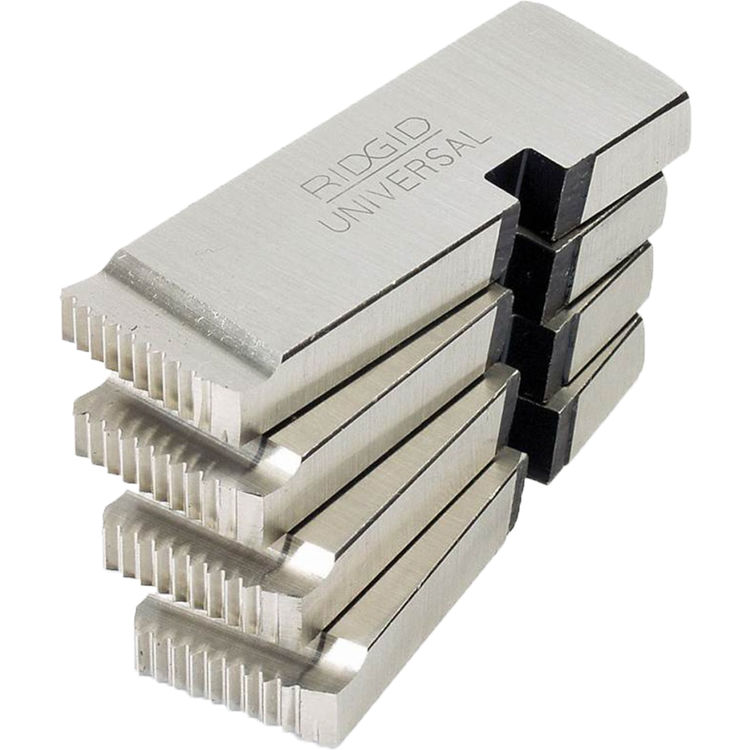

RIDGID 47895 NPT HS RH 1/2 to 3/4 in. 14 TPI for Nos. 514, 515, 555, DD Heads

SKU: 96728

$162.95/ea
Save 26% · Retail: $221.15

  Available to Ship in 1-2 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks
$162.95/ea

About the Ridgid 47895

RIDGID 47895 one half to three quarter inch NPT (Nominal Pipe Size) - 14 TPI (Threads Per Inch) High Speed, Right Hand Cut dies are compatible RIDGID Universal Die Heads (Nos. 514, 515, 555, and 1/2" to 3/4" Dual Die Heads). The Die Heads can be mounted onto several different threading machines also from RIDGID The Dies in the head can be easily changed and if the Die Head is mounted to a machine the Die Head does not need to be removed from the machine for die changes. Dies have notches designed into them that will click into position inside the die head with its spring balls that catch the die and allow the operator to easily know when the dies are correctly installed in the Universal Die Head. And the die blades are designed with a two-step cut method which provides a very stable bite into the pipe, allowing any external coating to be removed as the pipe is cut at the same time. Dies from RIDGID are marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification. Dies are crafted from tool steel and designed for right hand cutting of threads.

Product Details

Manufacturer: Ridgid
Trade Tools: Plumbing
Style: Die Set
Product: Parts and Accessories
Mpn # 47895
Weight 0.65 lbs.

Product Features

  • NPT
  • With 27 mm-wide profiling dies, the load is reduced, which makes it easy on the motor of a threading machine
  • 1/2 - 3/4 inch nominal pipe Size
  • 14 Threads per inch
  • High-Speed
  • Right Hand Thread
  • Used in 514 (LH), 515 (RH), 555 (RH), and 1/2 to 3/4 Dual Die Heads
  • Full Lifetime Warranty
  • Threading size, thread length, and microfine adjustment of thread diameter can all be adjusted easily
  • Dies can be changed without removing the die head from the machine
  • Dies are crafted from tool steel
  • Marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification
  • Two-step blade provides a stable bite allowing you to remove any external coating and cut the pipe at the same time
  • Notches in the dies click into position against spring balls in the die head for easy confirmation the dies are installed correctly

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Thank you for seeking assistance from the PlumbersStock team about the Ridgid 47895. According to Ridgid, the blades have dimensions of 2 23/64 inches L X 7 inches W. If you'd like to order this product, feel free to click "Add to Cart" and put your postal code and you're good to go. Have a wonderful day!
