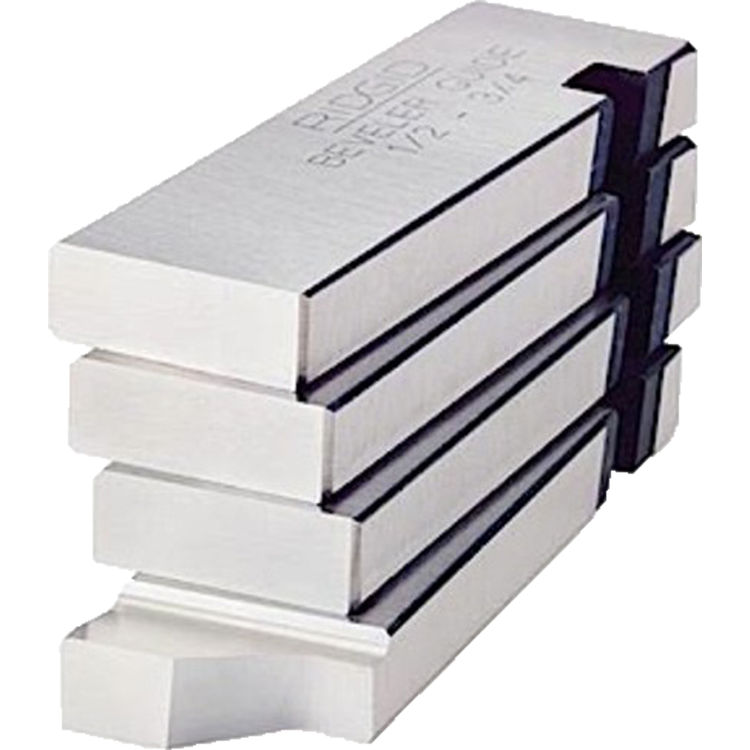

RIDGID 52192 Bevel dies for 1/2 to 3/4 inch pipe 37 1/2 degree prep for welding

SKU: 95469

Was: $ 198.00/ ea
See Sale Price in Cart
Retail: $225.00

  Available to Ship in 1-2 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks
See In Cart

About the Ridgid 52192

RIDGID 52192 Bevel dies for one half to three quarter inch pipe, 37 1/2 degree bevel dies are compatible RIDGID Universal Die Heads. Set consists of one cutting die and three guide dies and are used to bevel pipe preparatory to welding the pipes together. The Die Heads can be mounted onto several different threading machines also from RIDGID The Dies in the head can be easily changed and if the Die Head is mounted to a machine the Die Head does not need to be removed from the machine for die changes. Dies have notches designed into them that will click into position inside the die head with its spring balls that catch the die and allow the operator to easily know when the dies are correctly installed in the Universal Die Head. And the die blades are designed with a two-step cut method which provides a very stable bite into the pipe, allowing any external coating to be removed as the pipe is cut at the same time. Dies from RIDGID are marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification. Dies are crafted from tool steel and designed for right hand cutting of threads.

Product Details

Manufacturer: Ridgid
Trade Tool Type: Plumbing
Style: Die Set
Product: Parts and Accessories
Mpn # 52192
Weight 0.72 lbs.

Product Features

  • Note: Universal Dies fit all Universal Die Heads.
  • Note: 2 1/2-4 Beveling Dies are available for the No. 1224 threading Machine. See accessories for No. 1224.
  • For Beveling Pipe Prior to Welding pipes together
  • Consist of Three Guide Segments and One Cutting Segment
  • 37 1/2 degree bevel cut
  • 1 to 2 inch Pipe Size
  • 25 to 50 mm pipe size
  • Used in Universal Die Head
  • Full Lifetime Warranty
  • With 27 mm-wide profiling dies, the load is reduced, which makes it easy on the motor of a threading machine
  • Dies can be changed without removing the die head from the machine
  • Dies are crafted from tool steel
  • Marked for easy identification of size of pipe and bevel degree
  • Notches in the dies click into position against spring balls in the die head for easy confirmation the dies are installed correctly
