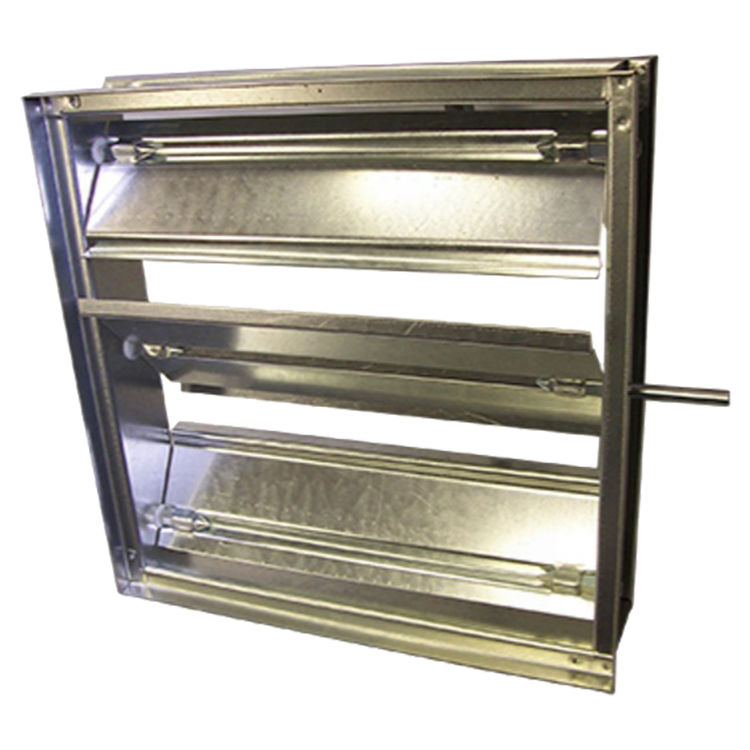

66X18 Opposed Blade Low Leak Air Control Damper- Shoemaker 3000-OBDLL

SKU: 142739
Minimum Quantity: 1

$1,816.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

66X18 Opposed Blade Low Leak Air Control Damper- Shoemaker 3000-OBDLL

SKU: 142739
$1,816.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$1,816.00/ea

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Type:
Style: Opposed Blade Air Damper
Material: Galvanized
Mpn # 3000-0BDLL-66X18
Weight 47.52 lbs.

Product Features

  • 1/2 Inch Square Zinc Plated Steel Adjustable Operating Shaft Extending Up To 4 Inch Beyond The Air Control Frame
  • Extended Square Operating Shaft (Extending 7-1/2" Beyond The Air Control Frame)
  • Flat Head And Sill Frame Build
  • Fractional And Odd Dimension Sizes Available
  • Mill Finish
  • Oil Impregnated Bronze Bushings
  • Opposed Blade Movement For Precise Volume Control
  • Outside Mounting Flange
  • Round Operating Shaft (1/2" Diameter)
  • Isolated Blades On Dampers With A Height of 12 Inch OR Less
  • Sleeve Options
  • 1/2 Inch Square Zinc Plated Steel Pivot Pins
  • Spring Closed or Spring Open Dampers
  • 12 Ga. Galvaneal Construction
  • 16 Ga. Galvanized Channel Frame
  • 3000 Obdll - Low Leak Air Control Damper. Jamb Seals (Stainless Steel), Blade To Blade Neoprene Seals, 3% Maximum Leakage With A Pressure Differential 3" W.C.
  • 3100 Series - Face And By-Pass Dampers
  • Blades Are Vee Stiffened 16 Ga. Galvanized For Strength And Stability
  • Blades Pivot On Non-Metallic Celcon Bushings
  • Direct Mount Damper Motors
