10x22 Soft White Perforated Return Air Grille T-Bar (Aluminum) - Shoemaker 600PT-0

SKU: 133604

$157.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

10x22 Soft White Perforated Return Air Grille T-Bar (Aluminum) - Shoemaker 600PT-0

SKU: 133604
$157.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$157.00/ea

About the Shoemaker 600PT-0-1X2

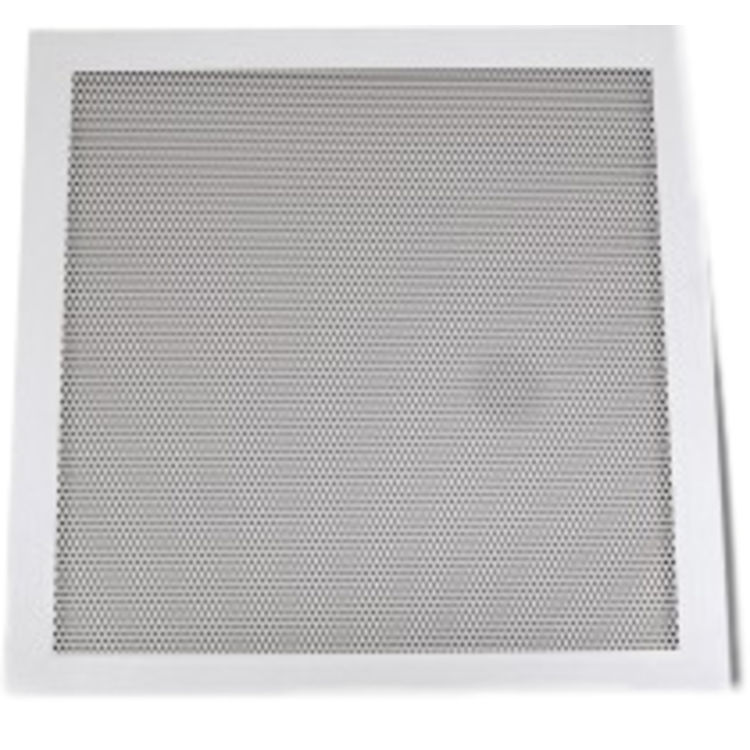

This Soft White 10"x22" Shoemaker 600PT-0 Perforated Return Air Grille is designed to fit and cover a 10" wide by 22" high opening. The quality and simplicity of this Return Air Grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. This Shoemaker 600PT grille is typically mounted in drop ceilings. It has an extruded aluminum surface mount frame with signature line marks. This T-bar lay-in return air grille has a 2x2 perforated surface with a fifty-eight percent free area. It has 3/16” holes on 1/4" staggered centers. The Shoemaker 600PT Series is designed to conceal ductwork and to ensure a stable and controlled room temperature. The standard color of this grille is soft white only. A square collar design is available for a 22” x 22” duct. This Shoemaker grille comes equipped with a recessed opposed blade damper operated by a screwdriver. This unique feature gives the user the ability to increase or decrease the air flow without having to worry about others tampering with the desired flow rate. Compared to other damper types, an opposed blade damper provides a more consistent air flow. A recessed screwdriver-operated damper limits unnecessary movements of the damper setting. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Please measure the hole opening size instead of measuring the face plate of your old grille. Please note that this grille is designed to fit over a 10"x22" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Type: T-Bar
Material: Aluminum
Size:
Color: White
Mpn # 600PT-0-1X2
Weight 0.60 lbs.

Product Features

  • Recessed screwdriver operated Opposed Blade Damper (600PT-0)
  • Extruded aluminum surface mount frame with signature line marks
  • 58% free area
  • 3/16 inch holes on inch staggered centers
  • Standard color Soft White only
  • Square collar designed for 22 inches x 22 inches duct
  • 2x2 perforated face T-bar lay in return air grille
  • Perforated face return air grille
  • Available in T-Bar application (600PT)
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead (600PT-NLC), available in square sizes only
  • Call us, if desired, to order 1x1 T-bar (10 inches x 10 inches duct), 1x2 T-Bar (10 inches x 22 inches duct), 2x4 T-Bar (22 inches x 46 inches duct)
  • Call us, if desired, to order Fiber glass back plenum: preformed, contour molded fiberglass back with a foil barrier backing (601PT)
