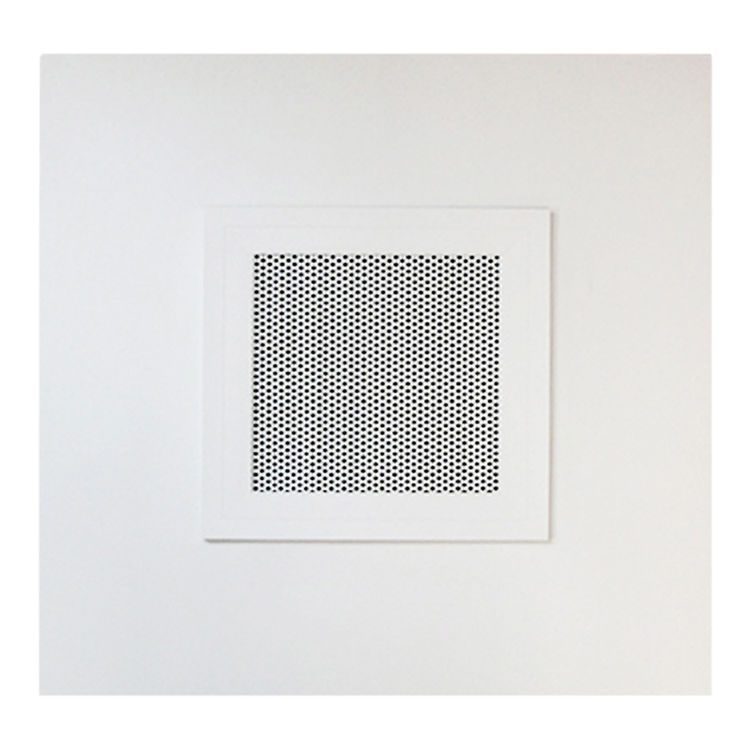

16" x 16" Perforated Return Air Grille in T-Bar Panel w/ 14" Collar, White - Shoemaker 700-600P-16X16-14

SKU: 135813
$ 225.00 / ea
 Free Shipping!

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

16" X 16" Perforated Return Air Grille In T-bar Panel W/ 14" Collar, White - Shoemaker 700-600P-16X16-14

SKU: 135813
$225.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$225.00/ea

About the 16" x 16" Perforated Return Air Grille in T-Bar Panel w/ 14" Collar, White - Shoemaker 700-600P-16X16-14

Shop the 16" x 16" Perforated Return Air Grille in T-Bar Panel with 14" Collar in soft white (Shoemaker 700-600P-16X16-14) here at PlumbersStock. The 2-inch ADC compliant round collar with bead makes for ease of installation. The 3/16" perforated holes are staggered at 1/4" centers. The extruded frame is fixed in a T-Bar panel. There is no opposed blade damper with the 700-600P series, you have to check out the 700-600P-O series. The pre-coat and powder finish will resist rust for years. Shoemaker manufactures heating and cooling solutions that are both innovative and practical.

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Color: Soft White
Mpn # 700-600P-16X16-14
Weight 10.24 lbs.
  • Standard color soft white
  • 2 x 2 steel panel with seismic support holes (700)
  • Perforated return air grille in a extruded aluminum frame with signature line marks (600P)
  • 3/16 inch holes on 1/4 inch staggered centers
  • Grille available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Square Collar
  • TVB – Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • NGD – Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time.
  • Call us, if desired, to order Recessed screwdriver operated Opposed Blade Damper (700-600P-0)
