10X10-9 Soft White Adjustable Curved Blade Diffuser in T-Bar Panel Opposed Blade Damper - Shoemaker 700CB40-0 Series

SKU: 135886
Minimum Quantity: 1

$229.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

10X10-9 Soft White Adjustable Curved Blade Diffuser in T-Bar Panel Opposed Blade Damper - Shoemaker 700CB40-0 Series

SKU: 135886
$229.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$229.00/ea

About the Shoemaker 700CB40-0-10X10-9

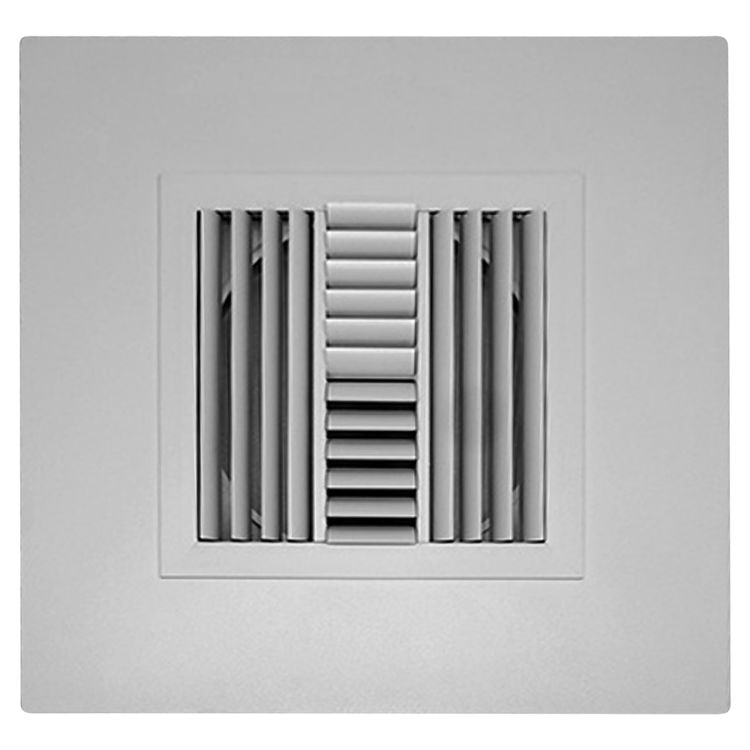

This Soft White 10"x 10"-9 Shoemaker 700CB-0 Series is an Adjustable Curved Blade Diffuser in T-Bar Panel. This diffuser is designed with adjustable curved blades set in nylon bushings for easy adjustment and quiet setting of the blades. It comes with a recessed screwdriver-operated Opposed Blade Damper. A recessed screwdriver-operated damper allows the user to adjust the damper to produce the desired air flow. Compared to other damper types, an opposed blade damper provides a more consistent air flow. It has a 2 x 2 steel panel with seismic support holes, giving this diffuser durability and reliability. It is available in sizes 6”x 6” through 20”x 20”. Shoemaker 700CB-0 Series has five air pattern options. It is available in 1-Way (700CB-10A), 2-Way (700CB-20A), 2-Way Corner (700CB-20D), 3-Way (700CB-30A) and 4-Way (700CB-40) air patterns. It features a square-to-round ADC-compliant 2” no-labor collar with roll-formed retention beads. The standard collar diameter of this diffuser is the same as the diffuser size. The quality and simplicity of this diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. Shoemaker Manufacturing guarantees that its products are free from defective materials.Please note that the size of this Shoemaker 700CB-0 shown here is the diffuser size (10"x 10") with a non-standard collar size of 9". Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Type:
Material: Steel
Color: White
Mpn # 700CB40-0-10X10-9
Weight 4.00 lbs.

Product Features

  • Recessed screwdriver-operated Opposed Blade Damper
  • Adjustable curved blades set in nylon bushings for easy adjustment and quiet setting of blades
  • 2 x 2 steel panel with seismic support holes
  • Diffuser available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Standard collar diameter is the same as the diffuser size
  • Soft White
  • Optional Five air patterns available 1 Way (700CB-10A), 2 Way (700CB-20A), 2 Way Corner (700CB-20D), 3 Way (700CB-30A) and 4 way (700CB-40)
  • Optional Square Collar
  • Optional Non-standard size collar (available in 6 inches through 20 inches collar)
  • Optional TVB Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • Optional NGD Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time (700CB-NGD).
