Shoemaker 845-10X8 10

10" x 8" 3-Way Stamped Register, White - Shoemaker 845-10X8

SKU: 126266

We are Sorry we no longer carry this item.

Check below for similar items!

About the Shoemaker 845-10X8

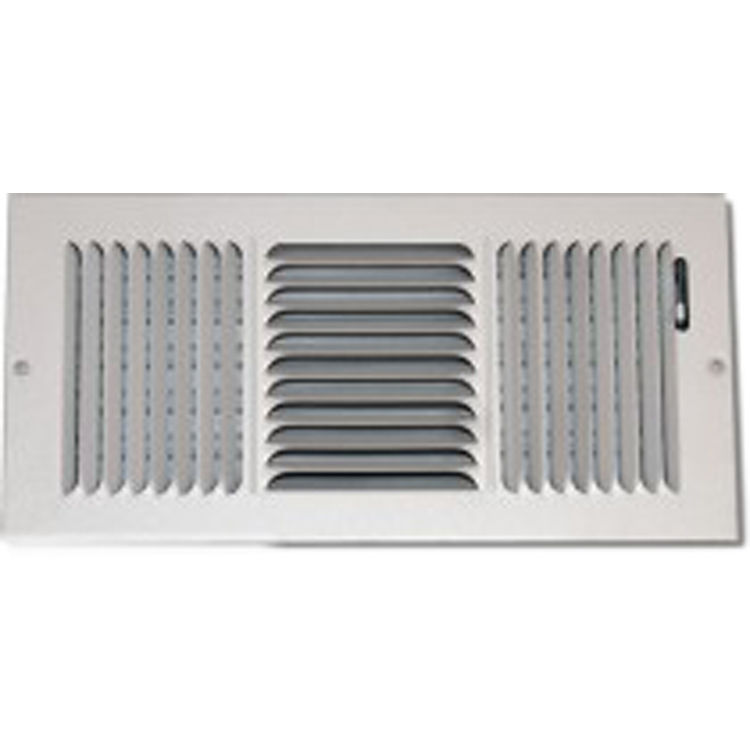

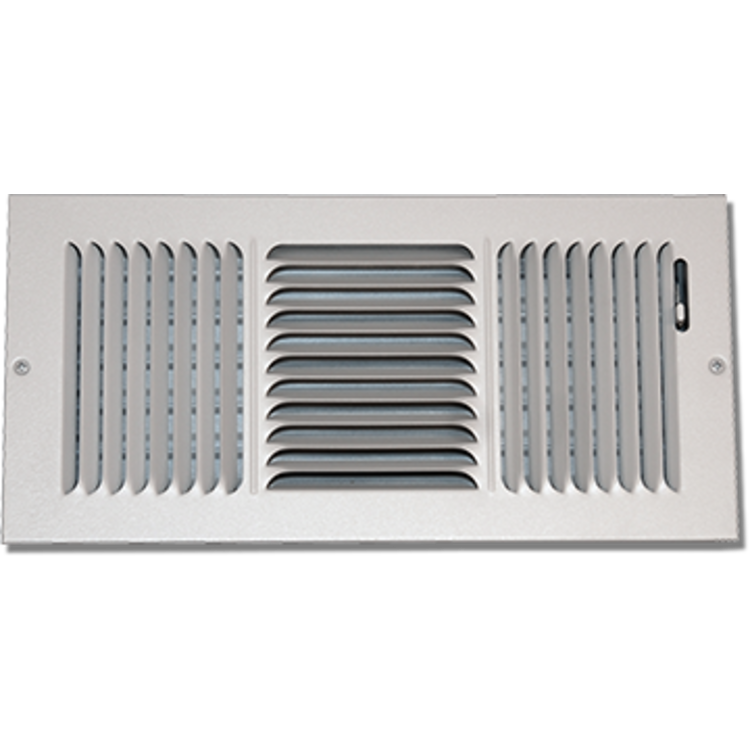

This White 10" x 8" Shoemaker 845 Series Vent Cover is designed to fit and cover a 10” wide by 8” high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this 3-way stamped diffuser are only two reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real-world applications.

 The Shoemaker 845 Series 3-Way Stamped Diffuser is equipped with a lever-operated multi-shutter damper. This 3-way diffuser is designed for quiet operation with half-inch stabilized fan-shaped louvers. All component parts, such as the rivets, the linkage, and the handle, are enclosed in the valve for trouble-free operation. Normally, vent covers are mounted on walls, but this diffuser can also be mounted on ceilings. The standard color of this grille is soft white, but it is also available in driftwood tan. Optional designer colors and plated metal finishes are also available.

The Shoemaker 845 Series 3-Way Stamped Diffuser can be ordered with “F” Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille covers a 10" x 8" existing hole or duct. Refer to the Specification Sheet for more information.

Product: Vents and Terminations
  Air Grille and Registers
Manufacturer: Shoemaker
Color: White
Length: 10"
Mpn # 845-10X8
Weight 3.20 lbs.
  • Optional tamper-proof screws
  • Optional lever operated blade damper (845-O)
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional metal plating finishes: Antique brass, black nickel, oil rub bronze, pewter, polished brass, polished chrome, satin nickel
  • 845 O - Steel Lever Operated Opposed Blade Damper
  • All Component Parts, Rivets, Linkage, And Handle, Are Enclosed In The Valve To Assure Easy Operation
  • Countersunk Mounting Holes For Flush Appearance With Color Matching Phillips Posi-Drive Screws
  • For Ceiling Or Sidewall Applications
  • Soft White
  • Stamped 3-Way Fan Shaped Louvers For Draft-Free Heat Or Air Conditioning
  • Steel Multi-Shutter Damper
