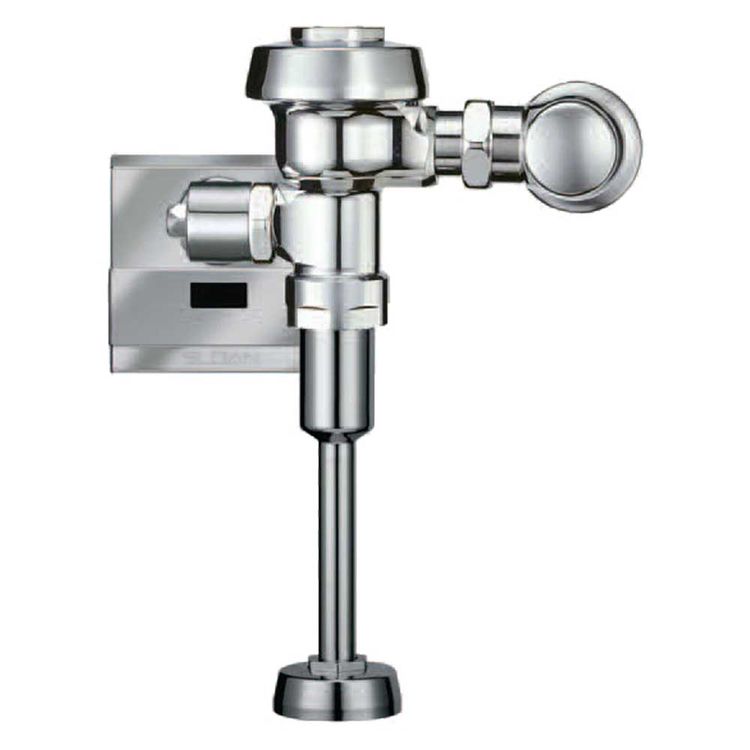

Sloan Royal Optima 186 ES-S - Sensor-Activated Urinal Flushometer with True Mechanical Override

SKU: 28632

$333.14/ea
Save 48% · Retail: $640.70

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$333.14/ea

About the Sloan 3452647

Sloan 186 ES-S Exposed Chrome Plated Automatically Operated Urinal Water Saver Flush Valve. The Sloan 186 ES-S Complies with ADA Requirements with the Oscillating Non-Hold-Open Handle, Water Saving 1.5 Gallon Per Flush Diaphram type Flushometer also features a 1" IPS Bak-Check Screwdriver Stop, Control Stop Plug and Has no External Water Adjustment to Ensure Water Conservation. The Sloan 186 ES-S is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product Details

Product: Top Spud Flush Valve
Manufacturer: Sloan
Style: Sensor Operated
Color: Chrome
Faucet Features: ADA
Mpn # 3452647
Weight 8.54 lbs.

Product Features

  • 1.5 gpf (5.7 Lpf)
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • OPTIMA EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
  • Non-Hold-Open Integral Solenoid Operator
  • Die Cast Sensor Cover Plate with no visible Fasteners (for 2-gang Electrical Box)
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance

Resources

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Not sure how to answer that. The supply inlet sits at 11-1/2 inches from the top of the urinal and the flush censor sits at approximately 8" from the top. The installation height differs depending on the size of the urinal you are using and the height you want that urinal to be.
