Sloan 3072611 Sloan GEM2 186 YB - Piston-Type Urinal Flushometer

Sloan GEM2 186 YB - Piston-Type Urinal Flushometer

SKU: 43984
$ 122.58 / ea
Save 35% · Retail: $189.85

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$122.58/ea

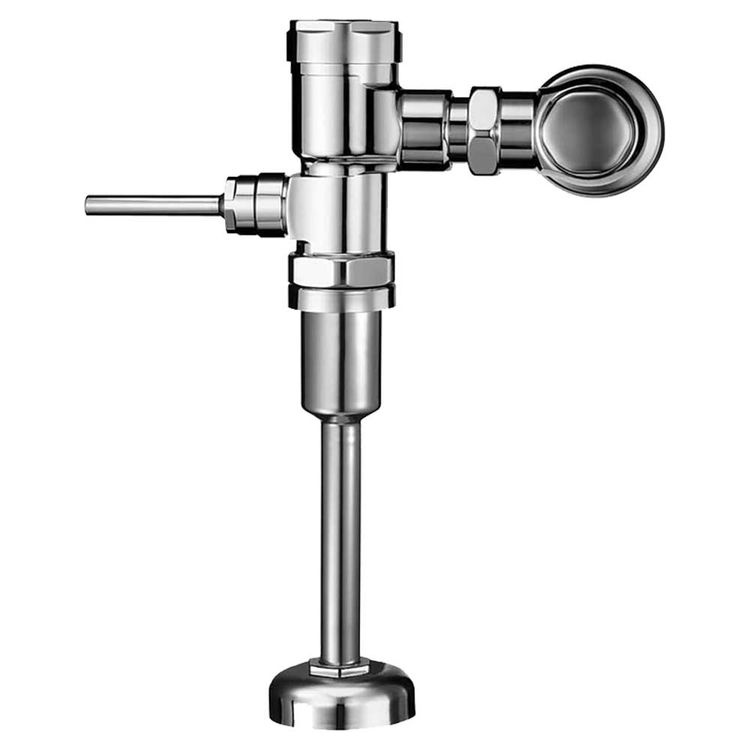

About the Sloan GEM2 186 YB - Piston-Type Urinal Flushometer

Sloan 186-YB Exposed Chrome Plated Manually Operated Urinal Water Saver Flush Valve. The Sloan 186-YB Complies with ADA Requirements with the Oscillating Non-Hold-Open Handle, Water Saving 1.5 Gallon Per Flush Diaphram type Flushometer also features a 1" IPS Bak-Check Screwdriver Stop, Control Stop Plug and Has no External Water Adjustment to Ensure Water Conservation. The Sloan 186-YB is constructed of a high copper, low Zinc Casting for dezincification resistance and includes a Sweat Solder Adapter Kit.

Manufacturer: Sloan
Product: Top Spud Flush Valve
Flush Valve Type: Exposed
Flow Rate: 1.0 & 1.6 Gallons Per Flush
Style: Manual
Faucet Handle Type: Lever Handle
Material: Brass
Color: Chrome
ADA: Yes
Room: Bathroom
Type: Urinal
Connection Type: IPS
Connection Size: 3/4"
Mpn # 3072611
Weight 5.47 lbs.
  • 11-1/2" Rough-In
  • Quiet, Exposed, Piston Type, Chrome Plated Urinal Flushometer
  • Fixed Volume Piston with Filtered O-ring Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Locking Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Vacuum Breaker Flush Connection
  • Spud Coupling, Wall and Spud Flanges for 3/4" Top Spud
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
  • Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME A112.19.2.
