About the Sloan 3913043

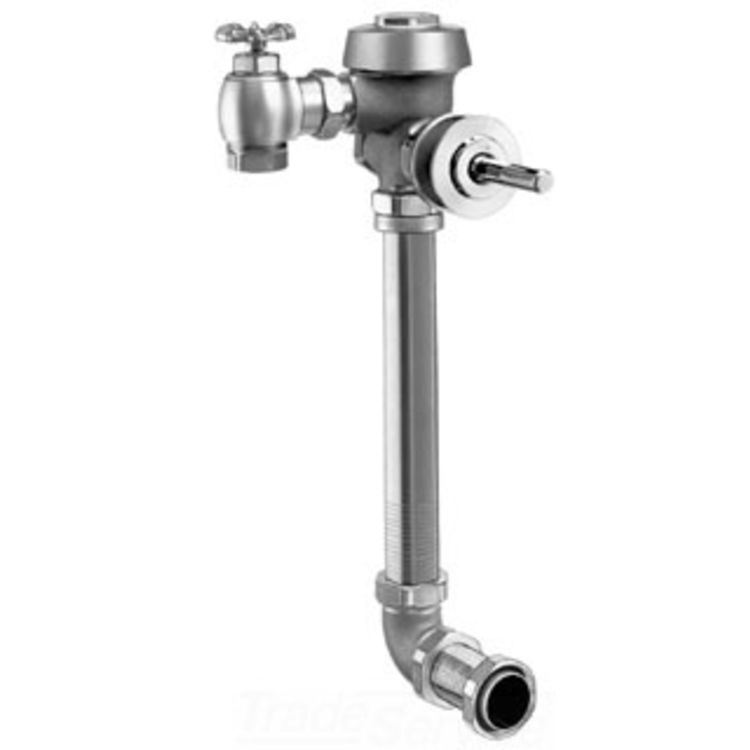

Sloan 190-1 Concealed Manual Operated Urinal Low Consumption Flush Valve. The Sloan 190-1 Complies with ADA Requirements, Low Consumption 1.0 Gallon Per Flush Diaphram type Flushometer also features a 1" IPS Bak-Check Wheel Handle Stop, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan 190-1 is constructed of a high copper, low Zinc Casting for dezincification resistance.

Manufacturer: Sloan
Product: Back Spud Flush Valve
Product Collection: Royal
Type: Closet/ urinal
Style: Diaphragm
Flow Rate: 1 Gallon Per Flush
Mount Type: Wall Mount
ADA: Yes
Material: Brass
Mpn # 3913043
Weight 9.33 lbs.
  • 14-1/2" Rough-In
  • 2-3/4" L Dimension
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • Spud Coupling for 1-1/4 Concealed Back Spud Urinals
  • Sweat Solder Adapter
  • Elbow Flush Connection
  • Exposed parts Chrome Plated
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
