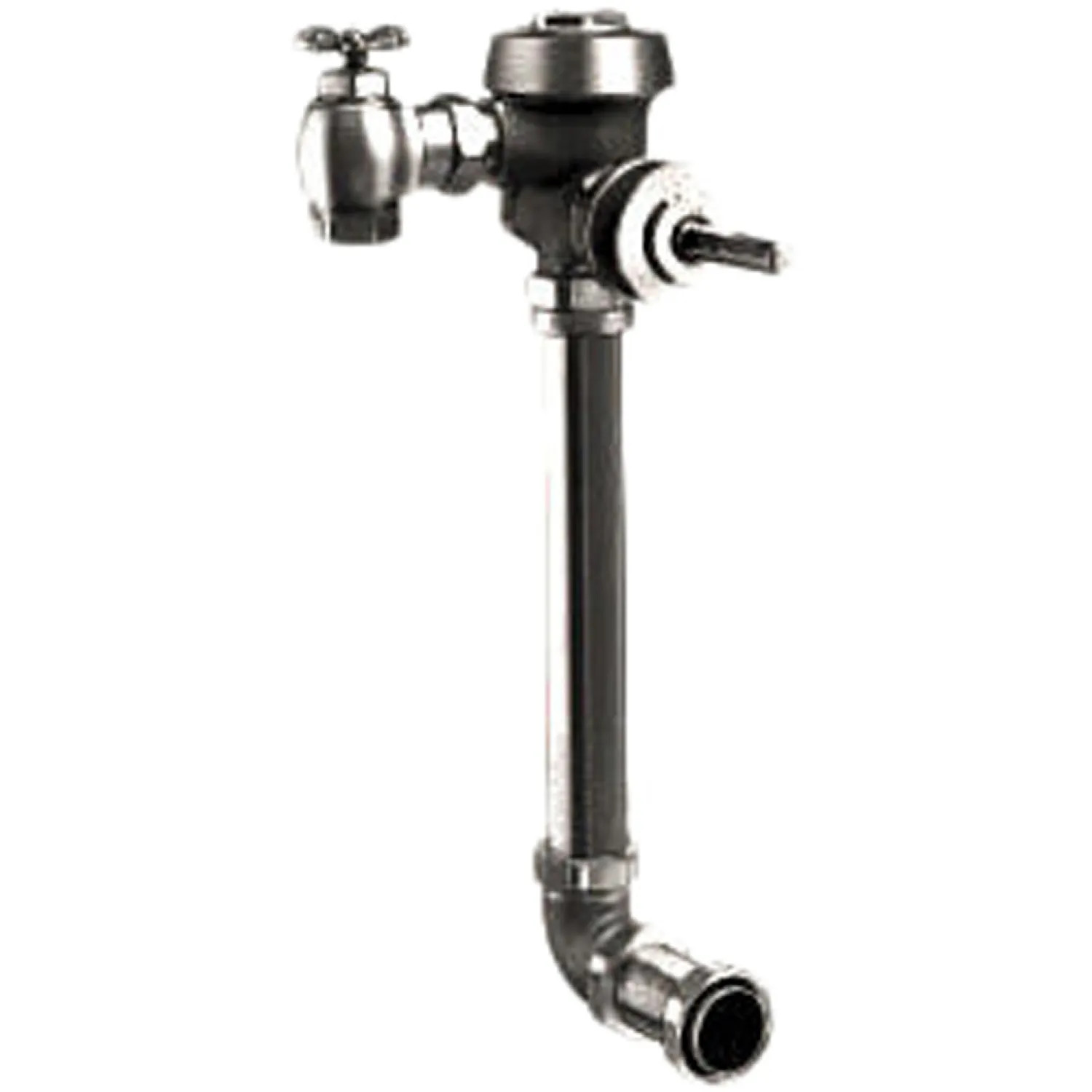

Sloan Royal 190-3.5-2-3/4-LDIM Concealed Manual Urinal Flushometer (3013000)

SKU: 68214
Manufacturer Image
-35.0%
$ 201 .08 / ea
$ 309 .35 / ea
visa mastercard american-express discover paypal crypto
local_shipping Free Shipping
Qty
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Available to Ship in 2-3 weeks
factory Orders from the Manufacturer

About the Sloan Royal 190-3.5-2-3/4-LDIM Concealed Manual Urinal Flushometer (3013000)

Sloan 190 Concealed Manual Operated Urinal Conventional Flush Valve. The Sloan 190 Complies with ADA Requirements, Conventional 3.5 Gallon Per Flush Diaphram type Flushometer also features a 1" IPS Bak-Check Wheel Handle Stop, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan 190 is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product: Medical
  Back Spud Flush Valve
Manufacturer: Sloan
Style: Armoire Entertainment
  Manual
Faucet Features: ADA
Product Collection: Royal
Mpn # 3013000
Weight 9.33 lbs.
  • 14-1/2" Rough-In
  • 2-3/4" L Dimension
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • Spud Coupling for 1-1/4 Concealed Back Spud Urinals
  • Sweat Solder Adapter
  • Elbow Flush Connection
  • Exposed parts Chrome Plated
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
