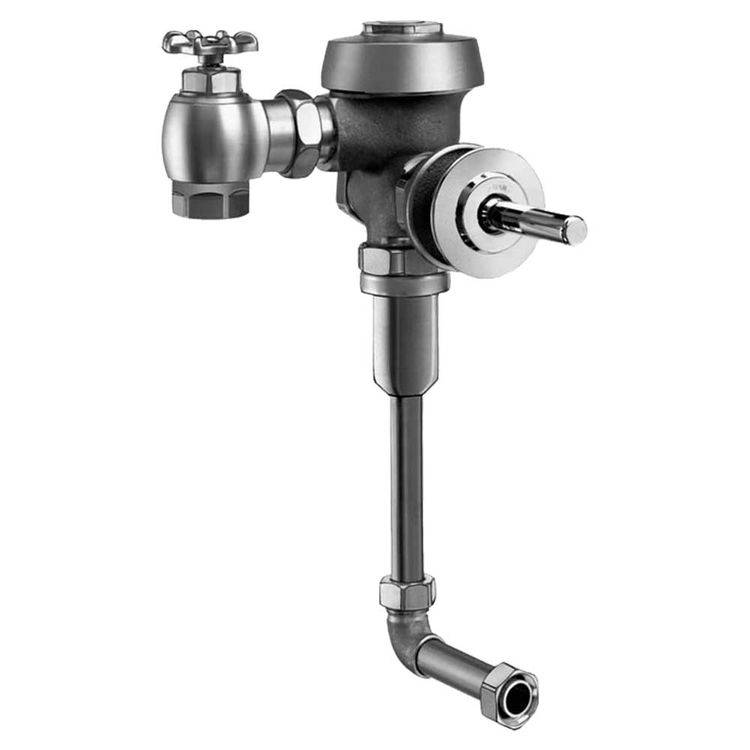

Sloan 3013210 Sloan Royal 195-1.5-3-3/4-LDIM Concealed Manual Urinal Flushometer (3013210)

Sloan Royal 195-1.5-3-3/4-LDIM Concealed Manual Urinal Flushometer (3013210)

SKU: 44188
$ 212.49 / ea
 Free Shipping!
Save 35% · Retail: $326.90

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan Royal 195-1.5-3-3/4-LDIM Concealed Manual Urinal Flushometer (3013210)

Sloan 195 Concealed Manual Operated Urinal Low Consumption Flush Valve. The Sloan 195 Complies with ADA Requirements, Low Consumption 1.0 Gallon Per Flush Diaphram type Flushometer also features a 3/4" IPS Bak-Check Wheel Handle Stop, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan 195 is constructed of a high copper, low Zinc Casting for dezincification resistance. 3 3/4" Linear Dimension

Manufacturer: Sloan
Product: Back Spud Flush Valve
Product Collection: Royal
Color: Rough Brass
Type: Urinal
Style: Manual
Mount Type: Wall Mount
Material: Brass
Flush Valve Type: Concealed
ADA: Yes
Mpn # 3013210
Shipping Dimensions 15.0" x 5.0" x 6.0"
Weight 8.29 lbs.
  • 3-3/4" L Dimension
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 3/4" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • Spud Coupling for 3/4" Concealed Back Spud Urinals
  • Sweat Solder Adapter
  • Elbow Flush Connection
  • Exposed parts Chrome Plated
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.2.
