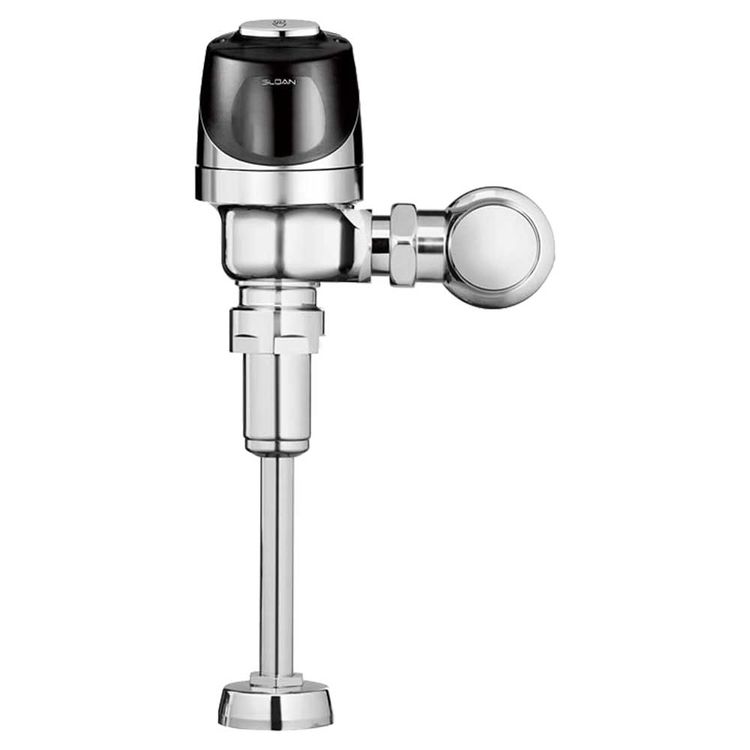

Sloan 3250403 Sloan G2 8186-1.5 Exposed Sensor Urinal Flushometer (3250403)

Product Options

Sloan G2 8186-1.5 Exposed Sensor Urinal Flushometer (3250403)

SKU: 2767
$ 550.00 / ea
 Free Shipping!
Save 35% · Retail: $846.15

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$550.00/ea

About the Sloan G2 8186-1.5 Exposed Sensor Urinal Flushometer (3250403)

Sloan 8186 Exposed Chrome Plated Battery Operated Sensor Operated Urinal Water Saver Flush Valve. The Sloan 8186 Complies with ADA Requirements, Conventional 3.5 Gallon Per Flush Diaphram type Flushometer also features a 1" IPS Bak-Check Screwdriver Stop, Control Stop Plug and Has no External Water Adjustment to Ensure Water Conservation. The Sloan 8186 is constructed of a high copper, low Zinc Casting for dezincification resistance.

Manufacturer: Sloan
Product: Top Spud Flush Valve
Type: Closet/ urinal
Style: Sensor Operated
Flush Valve Type: Exposed
ADA: Yes
Mount Type: Deck Mount
Material: Brass
Mpn # 3250403
Shipping Dimensions 9.0" x 16.0" x 4.0"
Weight 7.98 lbs.
  • Optima Plus 1.5 gpf (5.7 Lpf)
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Flex Tube Diaphragm designed for improved life and reduced maintenance
  • ADA Compliant OPTIMA Plus Battery Powered Infrared Sensor for automatic "No Hands" operation
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
  • Latching Solenoid Operator
  • Engineered Metal Cover with replaceable Lens Window
  • Courtesy Flush Override Button
  • Four (4) Size AA alkaline Batteries included: Duracell with DURALOCK Power Preserve Technology-guaranteed for up to 10 years in storage
  • Low Battery Flashing LED
  • Infrared Sensor Range Adjustment Screw
  • Initial Set-up Range Indicator Light (first 10 minutes)
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning, Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine resistance
  • 100% of the energy used in manufacturing is offset with Renewable Energy Sources - Wind Energy
