Sloan 3918984 Sloan Royal 9611-1.6 Concealed Manual Specialty Water Closet Hydraulic Flushometer (3918984)

Sloan Royal 9611-1.6 Concealed Manual Specialty Water Closet Hydraulic Flushometer (3918984)

SKU: 30308
$ 264.07 / ea
 Free Shipping!
Save 35% · Retail: $406.25

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$264.07/ea

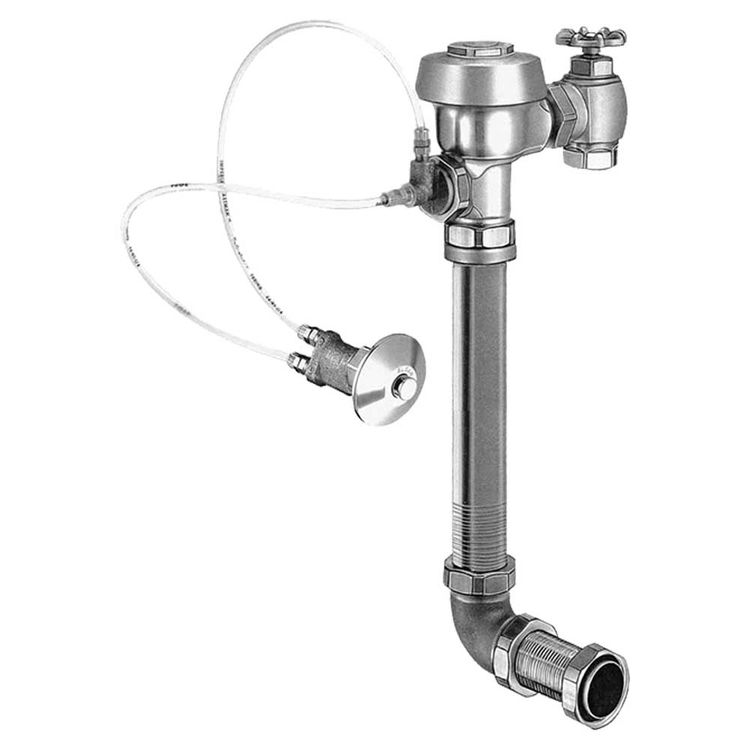

About the Sloan Royal 9611-1.6 Concealed Manual Specialty Water Closet Hydraulic Flushometer (3918984)

Sloan 9611-1.6 Concealed Hydraulically Operated Closet Low Consumption Flush Valve. The Sloan 9611-1.6 Complies with ADA Requirements, Low Consumption 1.6 Gallon Per Flush Diaphram type Flushometer also features a 1" IPS Bak-Check Screwdriver Stop, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan 9611-1.6 is constructed of a high copper, low Zinc Casting for dezincification resistance.

Manufacturer: Sloan
Product: Back Spud Flush Valve
Product Collection: Royal
Flow Rate: 1.6 Gallons Per Flush
Style: Hydraulic
Type: Closet/ urinal
Mount Type: Wall Mount
ADA: Yes
Material: Brass
Mpn # 3918984
Weight 7.20 lbs.
  • Quiet, Concealed, Diaphragm Type, Rough Brass Closet Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm w/Dual Filtered Fixed Bypass
  • ADA Compliant Non-Hold-Open Actuator (specify Actuator type listed below)
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • Elbow Flush Connection and Coupling for 1-1/2" NPT Back Inlet (for connection in the pipe chase - flush connection through the wall not provided by Sloan)
  • Sweat Solder Adapter
  • Exposed Parts Chrome Plated
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Push Button, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
  • 100% of the energy used in manufacturing is offset with Renewable Energy Sources - Wind Energy
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037.
