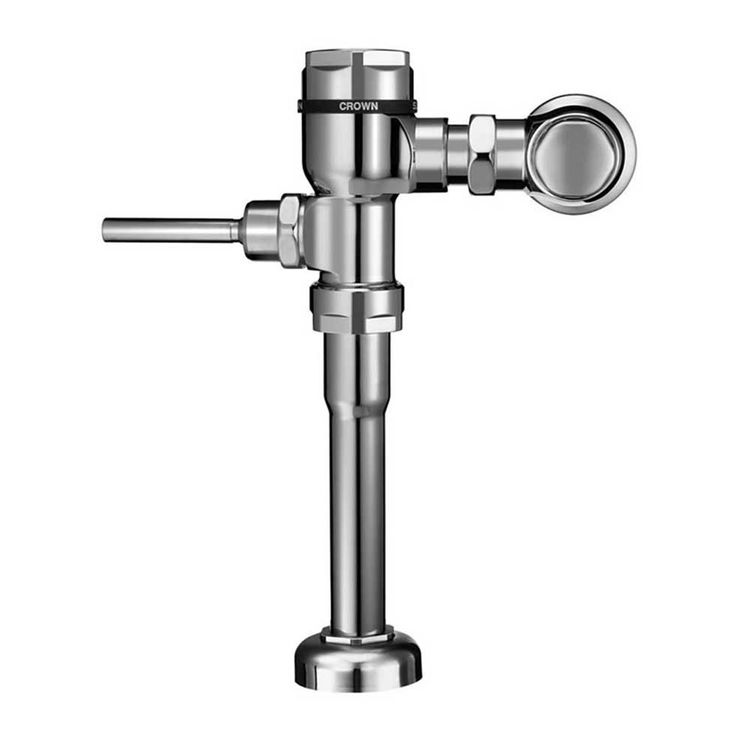

Sloan 3122436 Sloan Crown 180-1.0 Exposed Manual Urinal Flushometer, 1.0 GPF (3122436)

Sloan Crown 180-1.0 Exposed Manual Urinal Flushometer, 1.0 GPF (3122436)

SKU: 92573
$ 183.99 / ea
 Free Shipping!
Save 35% · Retail: $283.05

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$183.99/ea

About the Sloan Crown 180-1.0 Exposed Manual Urinal Flushometer, 1.0 GPF (3122436)

Sloan Crown 180 Exposed Water Urinal Flush Valve for 1.0 Gallon Per Flush, Low Consumption Valve Only 1 1/4" Top Spud. The Sloan Crown 180 features a Fixed Volume Piston with Filtered O-Ring Bypass a 1" IPS Screwdriver Bak Check Stop Valve With Vandal Resistant Cap and is Cast from High Copper and Low Zinc to Resist Dezincification. The Sloan Crown 180 Features a Non-hold Open Handle and has no External Volume Adjustmens to aid in Water Conservation. The Sloan Crown 180 uses PERMEX Rubber Compound in the Handle Packing, Main Seat, Stop Seat and Vacuum Breaker for increased Chloramine Resistance. Sloan Crown 180 Complies with ADA Requirements.

Flush Valve Type: Exposed
Faucet Features: ADA
Style: Manual
  Armoire Entertainment
Manufacturer: Sloan
Product: Top Spud Flush Valve
  Educational
Mpn # 3122436
Weight 6.80 lbs.
  • 11-1/2" Rough-In
  • Quiet, Exposed, Piston Type, Chrome Plated Urinal Flushometer
  • Fixed Volume Piston with Filtered O-ring Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Locking Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 1-1/4" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Valve designed to accept Low and Ultra-Low Consumption Pistons only to ensure Water Conservation
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Handle Packing, Main Seat, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037.
