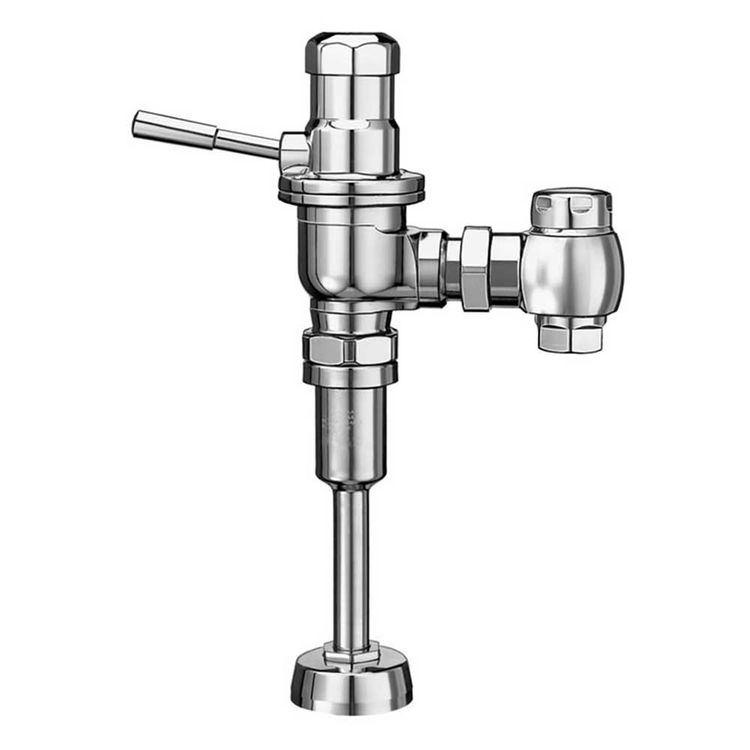

Sloan Dolphin 186-1 - Urinal Flushometer

SKU: 92612

 Free Shipping!
Save 35% · Retail: $564.25

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 3052600

Sloan Dolphin 186 Exposed Urinal Flush Valve for 1 1/4". Designed for use in Saltwater and other Severe Water Conditions. Sloan Dolphin 186 Has an Adjustable Flow Valve from 0.25 Gallons per Flush to 12 Gallons Per Flush, Set From the Factory at 1.0 Gallons Per Flush, and does not require water pressure to shut off. The Sloan Dolphin 186 features PERMEX Handle Packing, Stop Seat, and Vacuum Breaker for increased resistance to Chloramine, a non-hold open handle and no external volume adjustment to maintain water conservancy, and is cast from a high copper low zinc brass to resist dezincification. The Sloan Dolphin 186 also has a 1" Screwdriver Bak-Check Stop and a Vandal Resistant Stop Cap.

Product Details

Product: Top Spud Flush Valve
Manufacturer: Sloan
Style: Manual
Color: Chrome
Product Collection: Dolphin
Mount Type: Wall Mount
Mpn # 3052600
Weight 7.58 lbs.

Product Features

  • 11-1/2" Rough-In
  • Valve Adjustment Range: 0.25 gpf/0.9 Lpf to 12.0 gpf/45.4 Lpf
  • Factory settings made at 40 psi (275 kPa) - flush volume will vary with pressure and flow rate.
  • Quiet, Exposed, Chrome Plated Urinal Flushometer
  • Metal Lever Handle
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Locking Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Vacuum Breaker Flush Connection
  • Spud Coupling and Flange for 1-1/4" Top Spud
  • Flushometer does not require water pressure to positively shut off
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • 100% of the energy used in manufacturing is offset with Renewable Energy Sources - Wind Energy
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037.
