Sloan EL-600-A - SMOOTH Retrofit Kit (Hardwire)

SKU: 92761

Save 35% · Retail: $356.15

In Stock and Ready to Ship

Ships From Price Qty
California Warehouse
Ships in 1-4 Days
$237.32/ea 10
Iowa Warehouse
Ships in 1-4 Days
$248.88/ea 10
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 3305201

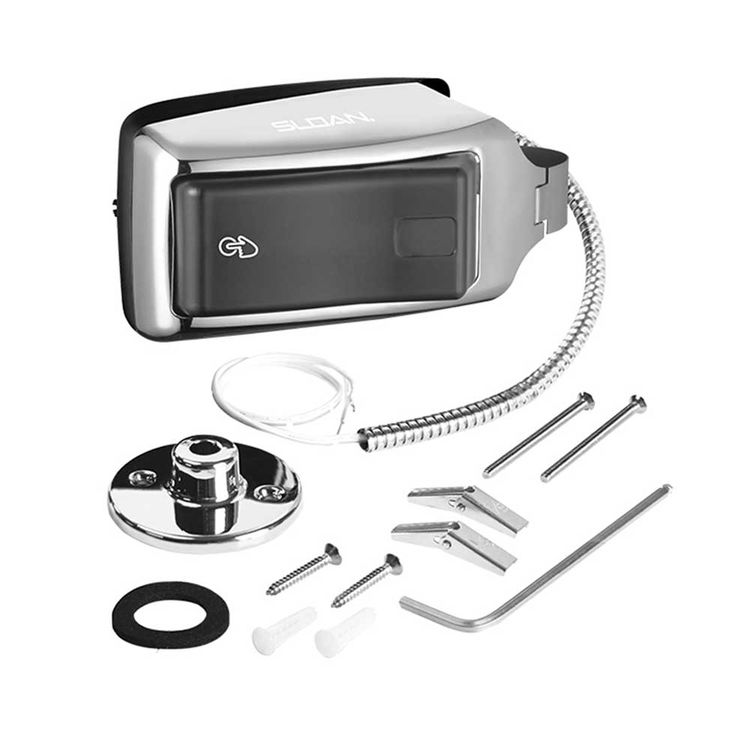

Sloan EL-600-A Hardwired Over the Handle Sensor Side Mounted Operator, Retrofit Kit. The Sloan EL-600-A Features Automatic Range Adjustment Sensor, Mechanical Override Button, and is Chrome plated. Retrofit kit fits over exsisting Flush valve handles for easy conversion to an Automatic Flush System. The Sloan EL-600-A Complies with the Requirements of the ADA.

Product Details

Product: Parts and Accessories
Manufacturer: Sloan
Faucet Part Feature: Hardware
Mpn # 3305201
Weight 2.51 lbs.

Product Features

  • SMOOTH Hardwire Retrofit Kit for Water Closets and Urinals
  • AC Powered, Sensor Activated, Exposed, OPTIMA SMOOTH Unit for Closet and Urinal Flushometer Conversions
  • ADA Compliant OPTIMA SMOOTH AC Powered Infrared Sensor for automatic "Hands-free" operation
  • Sensor with Automatic Range Adjustment
  • Chrome Plated Metal Sensor Housing
  • Mechanical Manual Override Flush Handle
  • Chrome Plated Flange and appropriate Wiring Hardware included
  • User in View Flashing LED
  • Sentinel Flush Mode
  • Vandal Resistant 1/8" Ball-Type Hex Key included
  • 25 to 80 psi Operating Range
  • Infrared Sensing with Automatic Adjustment
  • Mechanical Manual Override
  • 11-1/2" Rough-In
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Control Stop Plug
  • Sweat Solder Adapter with Cover Tube
  • Adjustable Tailpiece
  • Cast Wall Flange with Set Screw
  • Vacuum Breaker Flush Connection
  • Spud Coupling Wall and Spud Flange for 1-1/4" Top Spud
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
  • Low Consumption flush accuracy controlled by Para-Flo Technology
  • Handle Packing, Stop Seat and Vacuum Breaker to be Molded from PERMEX Rubber Compound for Chloramine Resistance
  • ASSE 1037 Compliant
