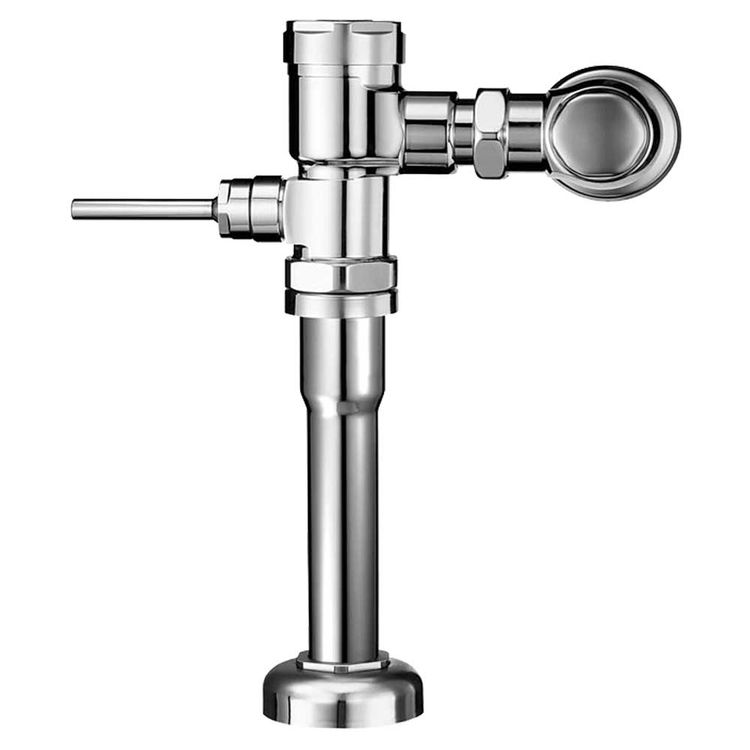

Sloan GEM2 180-1.5 YB - Piston-Type Urinal Flushometer

SKU: 92990

Save 35% · Retail: $232.40

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 3072427

Sloan Gem 2 180-1.5-YB Exposed Urinal Flush Valve for Water Saver 1.5 Gallon Per Flush Urinals with 1 1/4" Top Spud. The Sloan Gem 2 180-1.5-YB features a Fixed Volume Piston with Filtered O-Ring Bypass a 1" IPS Screwdriver Bak Check Stop Valve With Vandal Resistant Cap, Sweat Solder Adapter and is Cast from High Copper and Low Zinc to Resist Dezincification. The Sloan Gem 2 180-1.5-YB Features a Non-hold Open Handle and has no External Volume Adjustmens to aid in Water Conservation. The Sloan Gem 2 180-1.5-YB uses PERMEX Rubber Compound in the Handle Packing, Main Seat, Stop Seat and Vacuum Breaker for increased Chloramine Resistance. Sloan Gem 2 180-1.5-YB Complies with ADA Requirements.

Product Details

Product: Top Spud Flush Valve
Manufacturer: Sloan
Style: Manual
Color: Chrome
Faucet Features: ADA
Mpn # 3072427
Weight 5.58 lbs.

Product Features

  • 11-1/2" Rough-In
  • Sweat Solder Adapter Kit
  • Quiet, Exposed, Piston Type, Chrome Plated Urinal Flushometer
  • Fixed Volume Piston with Filtered O-ring Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Locking Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Vacuum Breaker Flush Connection
  • Spud Coupling, Wall and Spud Flanges for 1-1/4" Top Spud
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
  • Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME
