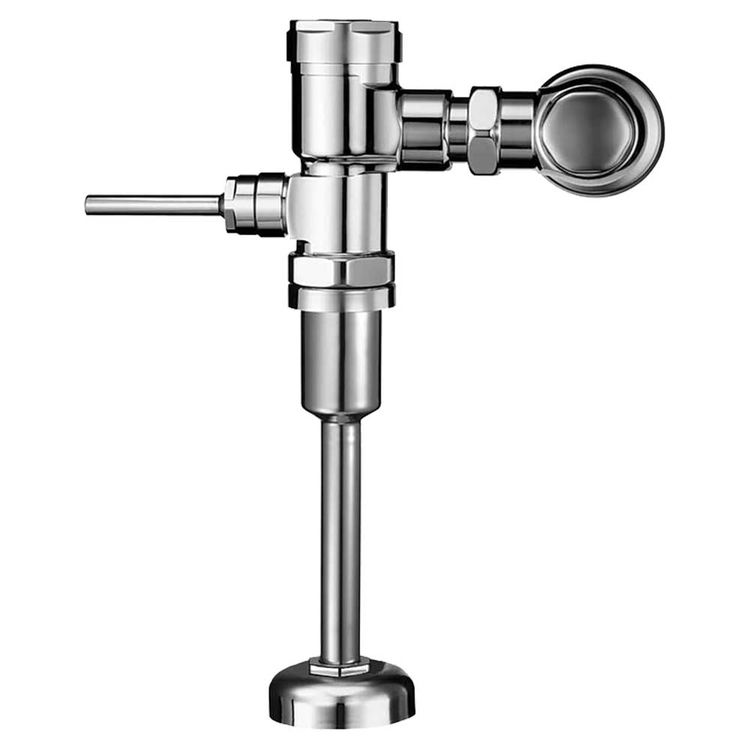

Sloan Gem-2 186-1 YB YC Urinal Flush Valve 3072606

SKU: 92995
Minimum Quantity: 1

$152.60/ea
Save 20% · Retail: $189.85

See buying options below:



Ships From Price Qty
California Warehouse
Ships in 1-3 Days
$196.40/ea 2
Order From Manufacturer
Available to Ship in 4-5 weeks
$152.60/ea

About the Sloan 3072606

Sloan Gem 2 186-1-YBYC Exposed Urinal Flush Valve for Low Consumption 1.0 Gallon Per Flush Urinals with 3/4" Top Spud. The Sloan Gem 2 186-1-YBYC features a Fixed Volume Piston with Filtered O-Ring Bypass a 3/4" IPS Screwdriver Bak Check Stop Valve With Vandal Resistant Cap, Sweat Solder Adapter, Cast Wall Flange with Set Screw and is Cast from High Copper and Low Zinc to Resist Dezincification. The Sloan Gem 2 186-1-YBYC Features a Non-hold Open Handle and has no External Volume Adjustmens to aid in Water Conservation. The Sloan Gem 2 186-1-YBYC uses PERMEX Rubber Compound in the Handle Packing, Main Seat, Stop Seat and Vacuum Breaker for increased Chloramine Resistance. Sloan Gem 2 186-1-YBYC Complies with ADA Requirements.

Product Details

Product: Top Spud Flush Valve
Manufacturer: Sloan
Use:
Type: Urinal
Style: Manual
Shape: Exposed
Size:
Color: Chrome
Faucet Features: ADA
Mpn # 3072606
Weight 5.51 lbs.

Product Features

  • Exposed Piston Type Manual Flushometer
  • 3/4" IPS Screwdriver Stop
  • Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Non-Hold Open Handle with No External Volume Adjustment For Conservancy
  • Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded From Chloramine Resistant PERMEX
  • High Copper Low Zinc Brass Casting for Increased resistance toward Dezincification
  • Low Consumption 1.0 GPF
  • Sweat Solder Adapter Kit and Cast Wall Flange with Set Screw
