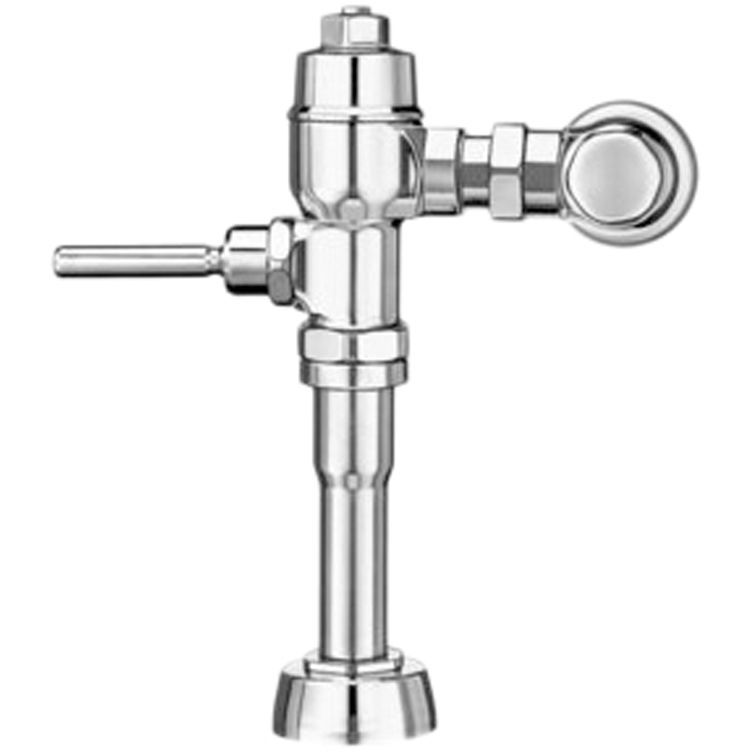

Sloan 3142402 Sloan Naval 180-1.0-XYV Exposed Manual Urinal Flushometer (3142402)
View 2 of Sloan 3142402 Sloan Naval 180-1.0-XYV Exposed Manual Urinal Flushometer (3142402)
View 3 of Sloan 3142402 Sloan Naval 180-1.0-XYV Exposed Manual Urinal Flushometer (3142402)

Product Options

Sloan Naval 180-1.0-XYV Exposed Manual Urinal Flushometer (3142402)

SKU: 93251
$ 386.72 / ea
 Free Shipping!
Save 35% · Retail: $594.95

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$386.72/ea

About the Sloan Naval 180-1.0-XYV Exposed Manual Urinal Flushometer (3142402)

Sloan Naval 180-1-XYV Exposed Piston Type Urinal Flush Valve, 1.0 Gallon Per Flush 1 1/4" Top Spud. The Sloan Naval 180-1-XYV Features a Preset Flow Rate and is Adjustable from 0.5 to 1.0 Gallons Per Flush, Vandal Resistant Stop Cap, Does not include the Vacuum Breaker and a 1" Screwdriver Bak-Check Angle Stop. The Sloan Naval 180-1-XYV is constructed of High Copper and Low Zinc for Increased Resistance to Dezincification, the Handle Packing, Stop Seat and Vacuum Breaker are made from PERMEX Rubber Compound for Chloramine Resistance.

Flush Valve Type: Exposed
Faucet Features: ADA
Style: Manual
  Armoire Entertainment
Manufacturer: Sloan
Product: Top Spud Flush Valve
  Educational
Mpn # 3142402
Weight 6.51 lbs.
  • Less Vacuum Breaker
  • Quiet, Exposed, Adjustable Piston Type, Chrome Plated Urinal Flushometer
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • Self-cleaning Xpelor Bypass
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Vacuum Breaker Flush Connection
  • Spud Coupling and Flange for 1-1/4" Top Spud
  • Stamped Wall Flange
  • Ultra High Copper, Low Zinc Brass Castings for Dezincification and Salt Water Resistance
  • Handle Packing, Stop Seat and Vacuum Breaker to be Molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
