Sloan 3980066 Sloan Regal 910-1.6 XL - Hydraulic Exposed Water Closet Flushometer

Printer friendly page

Sloan Regal 910-1.6 XL - Hydraulic Exposed Water Closet Flushometer

SKU: 93308
$265.79/ea
 Free Shipping!
Save 35% · Retail: $408.90

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$265.79/ea

About the Sloan 3980066

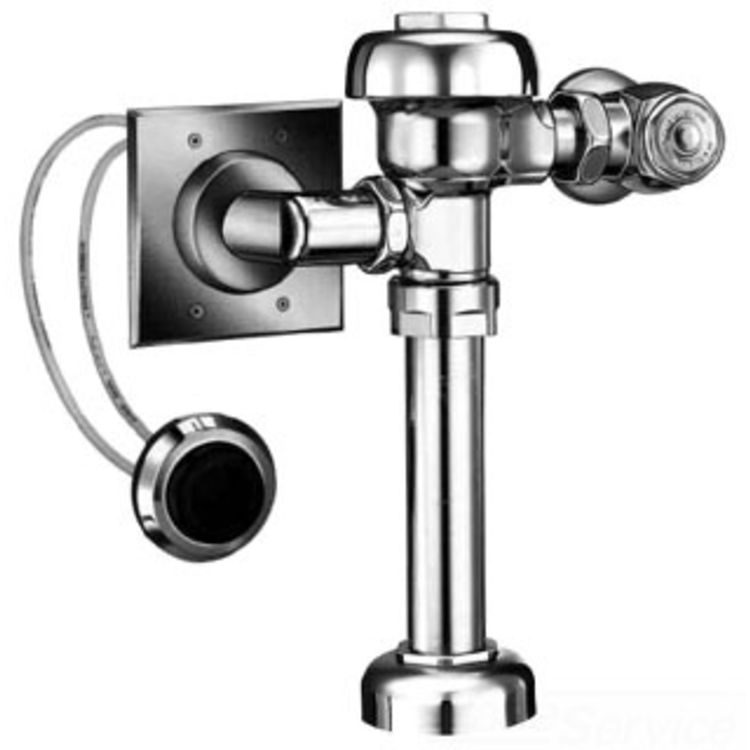

Sloan Regal 910-1.6-XL Exposed Chrome Plated Hydraulically Operated Closet Low Consumption Flush Valve. The Sloan Regal 910-1.6-XL Complies with ADA Requirements with the Non-Hold Open Push Button, Water Saving 1.6 Gallon Per Flush Hydraulic type Flushometer also features a 1" IPS Bak-Check Screwdriver Stop, Control Stop Plug, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan Regal 910-1.6-XL is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product Details

Flush Valve Type: Exposed
Faucet Features: ADA
Color: Chrome
Style: Hydraulic
  Bunk Beds
Faucet Part Feature: Closet
Manufacturer: Sloan
Product: Top Spud Flush Valve
  Educational
Product Collection: Regal
Mpn # 3980066
Weight 7.65 lbs.

Product Features

  • 11-1/2" Rough-In
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer for either left or right hand supply
  • Low Consumption flush accuracy controlled by Para-Flo Technology
  • ADA Compliant Non-Hold-Open feature type Actuator (specify Actuator type listed below)
  • Adjustable Tailpiece
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Control Stop Plug and Adjustable Tailpiece
  • Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 1-1/2" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • Stop Seat and Vacuum Breaker to be molded from PERMEX rubber compound for Chloramine resistance
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation.
  • Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance.
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037.
