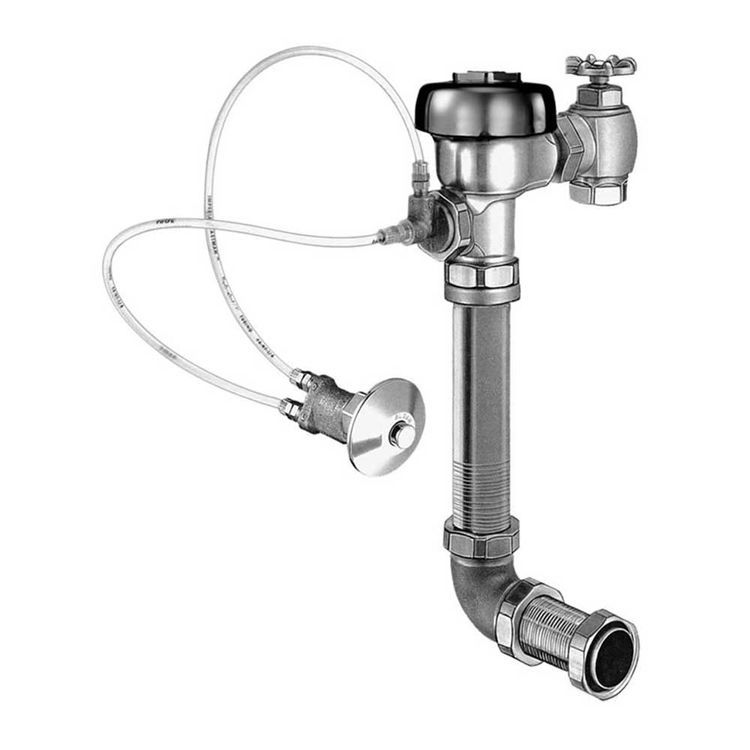

Sloan Regal 9603-1.6 XL - Hydraulic Prison Concealed Water Closet Flushometer

SKU: 93317

Save 35% · Retail: $391.30

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 3988106

Sloan Regal 9603-1.6-XL-MBFW Concealed Prison Chrome Plated Hydraulically Operated Closet Low Consumption Flush Valve. The Sloan Regal 9603-1.6-XL-MBFW Complies with ADA Requirements with the Non-Hold Open Metal Button Panel Mounted, Water Saving 1.6 Gallon Per Flush Hydraulic type Flushometer also features a 1" IPS Bak-Check Wheel Handle Stop, Control Stop Plug, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan Regal 9603-1.6-XL-MBFW is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product Details

Product: Back Spud Flush Valve
Manufacturer: Sloan
Faucet Part Feature: Closet
Style: Prison Model
Faucet Features: ADA
Mpn # 3988106
Weight 9.79 lbs.

Product Features

  • 14-1/2" Rough-In
  • Quiet, Concealed, Diaphragm Type, Rough Brass Closet Flushometer for either left or right hand supply
  • ADA Compliant Non-Hold-Open feature type Actuator (specify Actuator type listed below)
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece and Vacuum Breaker
  • Elbow Flush Connection and Coupling for 1-1/2" NPT Back Inlet (for connection in the pipe chase - flush connection through the wall not provided by Sloan)
  • Exposed parts Chrome Plated
  • Sweat Solder Adaptor
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Push Button, Fixed Metering Bypass, No External Volume Adjustment to Ensure Water Conservation and Low Consumption Flush Accuracy
  • Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037.
