Sloan 3988137 Sloan Regal 9603-3.5-XL-MBFW Concealed Manual Water Closet Hydraulic Flushometer -  3.5 gpf, Sloan 3988137

Product Options

Sloan Regal 9603-3.5-XL-MBFW Concealed Manual Water Closet Hydraulic Flushometer - 3.5 gpf, Sloan 3988137

SKU: 93313
$ 344.63 / ea
 Free Shipping!
Save 35% · Retail: $530.20

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$344.63/ea

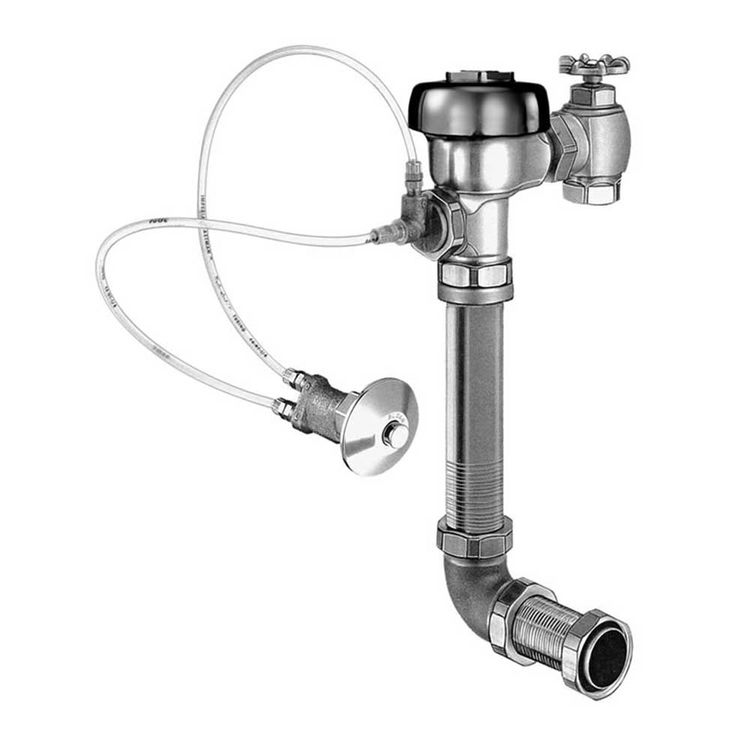

About the Sloan Regal 9603-3.5-XL-MBFW Concealed Manual Water Closet Hydraulic Flushometer - 3.5 gpf, Sloan 3988137

Sloan Regal 9603-XL-MBFW Concealed Prison Chrome Plated Hydraulically Operated Closet Water Saver Flush Valve. The Sloan Regal 9603-XL-MBFW Complies with ADA Requirements with the Non-Hold Open Metal Button Fixture Wall Mounted, Water Saving 3.5 Gallon Per Flush Hydraulic type Flushometer also features a 1" IPS Bak-Check Wheel Handle Stop, Control Stop Plug, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan Regal 9603-XL-MBFW is constructed of a high copper, low Zinc Casting for dezincification resistance.

Flush Valve Type: Concealed
Faucet Features: ADA
Style: Prison Model
  Impact Drill
Faucet Part Feature: Closet
Manufacturer: Sloan
Product: Back Spud Flush Valve
  Medical
Product Collection: Regal
Mpn # 3988137
Weight 9.79 lbs.
  • Flush Volume: 3.5 gpf (13.2 Lpf)
  • Finish: Rough Brass (RB)
  • Valve: Diaphragm
  • Valve Body Material: Semi-red Brass
  • Fixture Type: Water Closet
  • Fixture Connection: Rear
  • Rough-In Dimension: 16" (406mm)
  • Spud Coupling: 1 ½" (38mm)
  • Supply Pipe: 1" (25mm)
  • ADA Compliant Non-Hold-Open Actuator (specify Actuator type listed below)
  • Vacuum Breaker
  • Non-Hold-Open Push Button, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine Resistance
  • 1” I.P.S. Wheel Handle Bak-Chek® Angle Stop
  • Elbow Flush Connection and Coupling for 11⁄2” NPT Back Inlet (for connection in the pipe chase — flush connection through the wall not provided by Sloan)
  • Actuator HY100A-48 included
