Sloan 3982681 Sloan Regal 986-1 XL - Hydraulic Exposed Urinal flushometers

Printer friendly page

Sloan Regal 986-1 XL - Hydraulic Exposed Urinal flushometers

SKU: 93319
$309.60/ea
 Free Shipping!
Save 35% · Retail: $476.30

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$309.60/ea

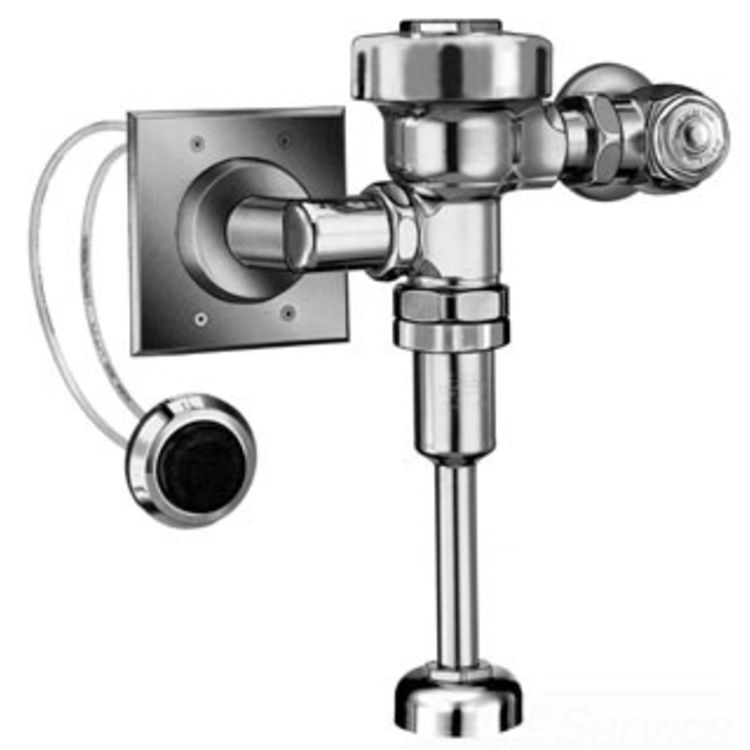

About the Sloan 3982681

Sloan Regal 986-1.0-XL Exposed Chrome Plated Hydraulically Operated Urinal Low Consumption Flush Valve. The Sloan Regal 986-1.0-XL Complies with ADA Requirements with the Non-Hold Open Push Button, Water Saving 1.0 Gallon Per Flush Hydraulic type Flushometer also features a 3/4" IPS Bak-Check Screwdriver Stop, Control Stop Plug, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan Regal 986-1.0-XL is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product Details

Flush Valve Type: Exposed
Faucet Features: ADA
Color: Chrome
Style: Hydraulic
  Bunk Beds
Manufacturer: Sloan
Product: Top Spud Flush Valve
  Educational
Product Collection: Regal
Mpn # 3982681
Weight 7.92 lbs.

Product Features

  • 11-1/2" Rough-In
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
  • Dual Filtered By-pass
  • ADA Compliant Non-Hold-Open feature type Actuator (specify Actuator type listed below)
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX rubber compound for Chloramine resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
