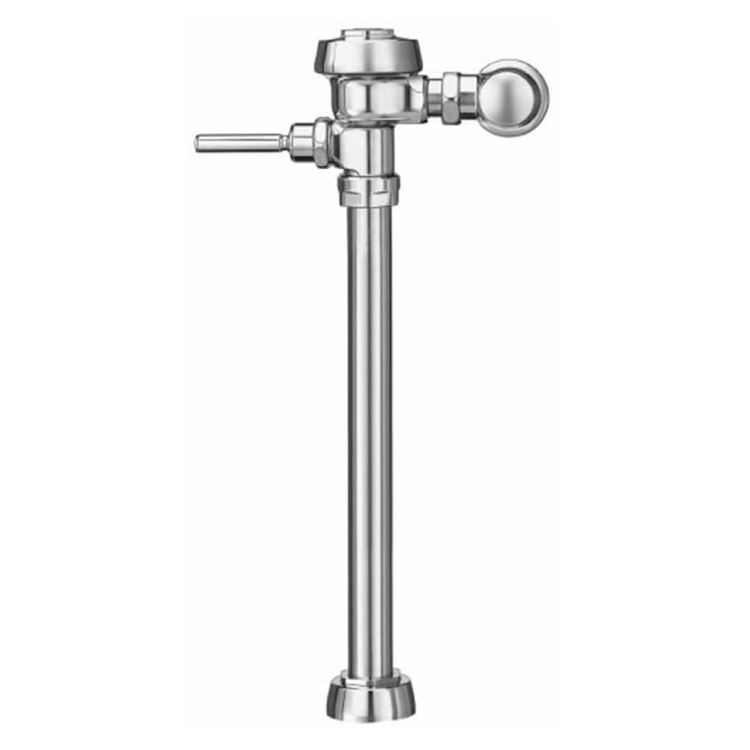

About the Sloan Royal 17-6.5-1-OFST Exposed Manual Service Sink Flushometer (3010503)

Sloan Royal 117-H-O-1 Exposed Chrome Plated Manually Operated Floor Drain Water Saver Flush Valve. The Sloan Royal 117-H-O-1 Complies with ADA Requirements with the Oscillating Non-Hold-Open Handle, Water Saving 3.5 Gallon Per Flush Diaphragm type Flushometer also features a 1" IPS Bak-Check Screwdriver Stop, Control Stop Plug, 1" Offset Vacuum Breaker and Has no External Water Adjustment to Ensure Water Conservation. The Sloan Royal 117-H-O-1 is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product: Top Spud Flush Valve
Manufacturer: Sloan
Style: Manual
Mount Type: Wall Mount
Product Collection: Royal
Mpn # 3010503
Weight 8.61 lbs.
  • 24" Rough-In
  • 1" Offset Quiet, Exposed, Diaphragm Type, Chrome Plated Service Sink Flushometer
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 1-1/2" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.2.
