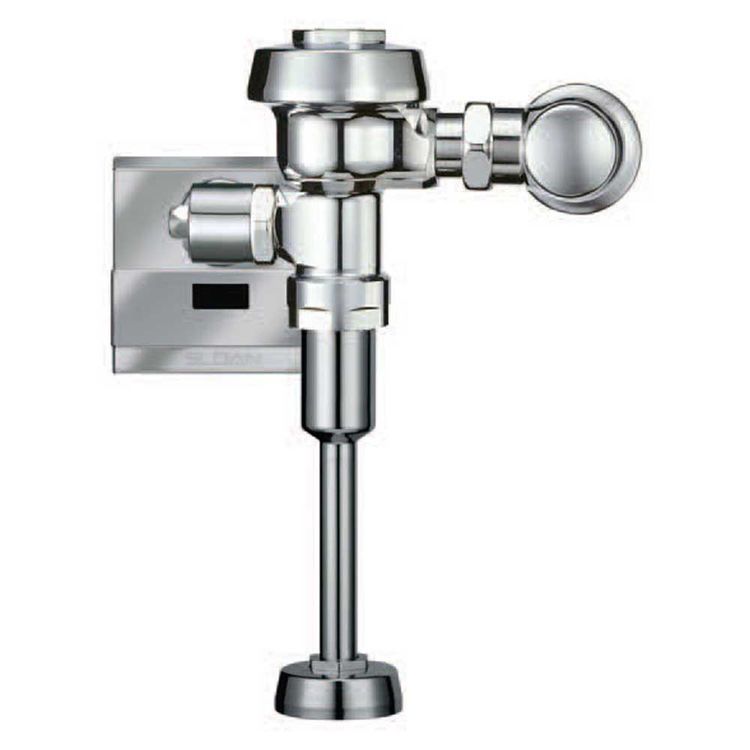

Sloan 3452625 Sloan Royal 186 ESS-0.25-DBP-HW Exposed Sensor Hardwired Urinal Flushometer (3452625)

Product Options

Sloan Royal 186 ESS-0.25-DBP-HW Exposed Sensor Hardwired Urinal Flushometer (3452625)

SKU: 93600
$ 575.45 / ea
 Free Shipping!
Save 35% · Retail: $885.30

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$575.45/ea ∞

About the Sloan Royal 186 ESS-0.25-DBP-HW Exposed Sensor Hardwired Urinal Flushometer (3452625)

Sloan Royal 186 is an Exposed, Sensor Activated Royal Model Urinal Flushometer for top spud urinals. Sloan Royal 186 is Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer. 0. 25 Gpf. ADA Compliant.

Product: Educational
  Top Spud Flush Valve
Manufacturer: Sloan
Style: Billiard Table
  Sensor Operated
Faucet Features: ADA
Product Collection: Royal
Mpn # 3452625
Weight 8.54 lbs.
  • 0.25 gpf (1.0 Lpf)
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
  • For Flushing Volumes 0.125 and 0.25: Dual Bypass Diaphragm
  • For Flushing Volumes 0.5: Dual Filtered Diaphragm
  • OPTIMA EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
  • Walk By Delay of Eight (8) Seconds Prevents Unintentional Flushes
  • User Friendly Three (3) Second Flush Delay
  • Non-Hold-Open True Mechanical Override
  • Non-Hold-Open Integral Solenoid Operator
  • Die Cast Sensor Cover Plate with no visible Fasteners (for 2-gang Electrical Box)
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
