Sloan Royal 186-1 HL3 - Exposed Urinal Flushometer

SKU: 93608

$180.93/ea
Save 35% · Retail: $278.35

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$180.93/ea

About the Sloan 3912663

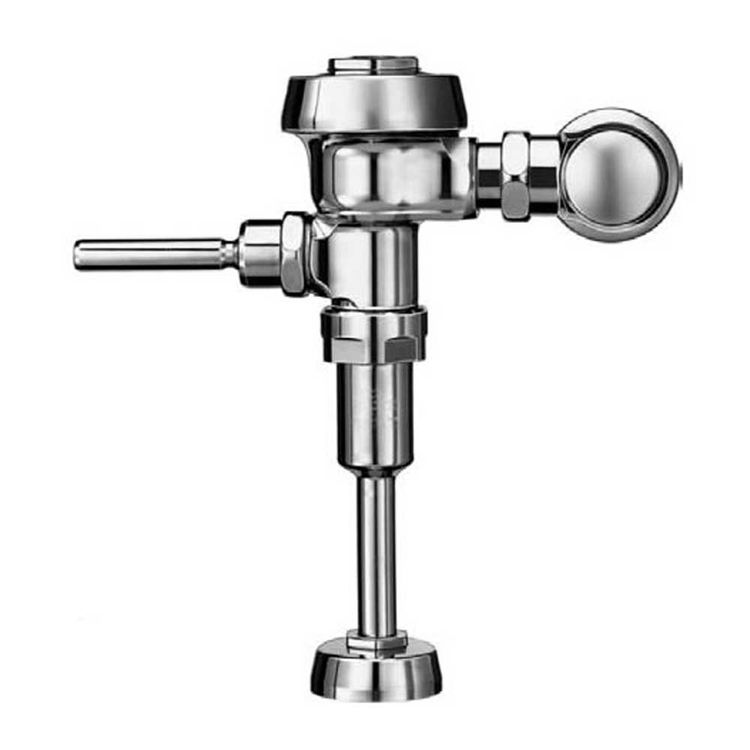

Sloan Royal 186 is an Exposed Urinal Flushometer for top spud urinals. 3" Metal Oscillating Push Button on front of valve. Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer. Sloan Royal 186 has a 1. 0 Gpf.

Product Details

Product: Top Spud Flush Valve
Manufacturer: Sloan
Style: Manual
Color: Chrome
Faucet Features: ADA
Mpn # 3912663
Weight 7.14 lbs.

Product Features

  • 11-1/2" Rough-In
  • 3" Metal Oscillating Push Button on front of valve (does not meet ADA requirements)
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop w/ Free Spinning Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum breaker flush connection w/ one-piece bottom hex coupling nut
  • Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter w/Cover Tube & Cast Wall Flange w/Set Screw
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
  • 100% of the energy used in manufacturing is offset w/ Renewable Energy Sources - Wind Energy
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037 and ANSI/ASME A112.19.2.
