Sloan 3912504 Sloan Royal 188-1.5-XD Exposed Manual Urinal Flushometer (3912504)

Printer friendly page

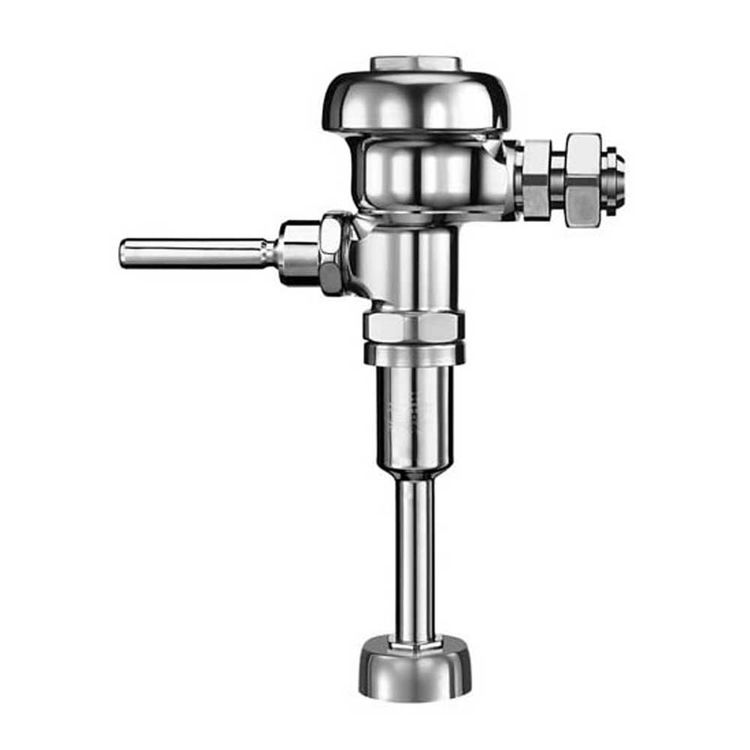

Sloan Royal 188-1.5-XD Exposed Manual Urinal Flushometer (3912504)

SKU: 93610
$159.19/ea
 Free Shipping!
Save 35% · Retail: $244.90

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$159.19/ea

About the Sloan 3912504

Sloan Royal 188 is an Exposed Urinal Flushometer with Adjustable Ground Joint Tailpiece, for top spud urinals. Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer. 1. 5 Gpf. ADA Compliant.

Product Details

Product: Educational
  Top Spud Flush Valve
Manufacturer: Sloan
Style: Armoire Entertainment
  Manual
Color: Chrome
Faucet Features: ADA
Product Collection: Royal
Mpn # 3912504
Weight 5.57 lbs.

Product Features

  • 11-1/2" Rough-In
  • The Flushometer replaces existing valves that incorporate Ground Joint Tailpiece connections without having to replace the supply Control Stop.
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • Adjustable Ground Joint Tailpiece (control stop not included)
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 3/4 Top Spud
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
