Sloan 3453266 Sloan Royal 195 ESS-0.25-2-10-3/4-LDIM-HW Concealed Sensor Hardwired Urinal Flushometer (3453266)

Printer friendly page

Sloan Royal 195 ESS-0.25-2-10-3/4-LDIM-HW Concealed Sensor Hardwired Urinal Flushometer (3453266)

SKU: 93667
$501.44/ea
 Free Shipping!
Save 35% · Retail: $771.45

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$501.44/ea

About the Sloan 3453266

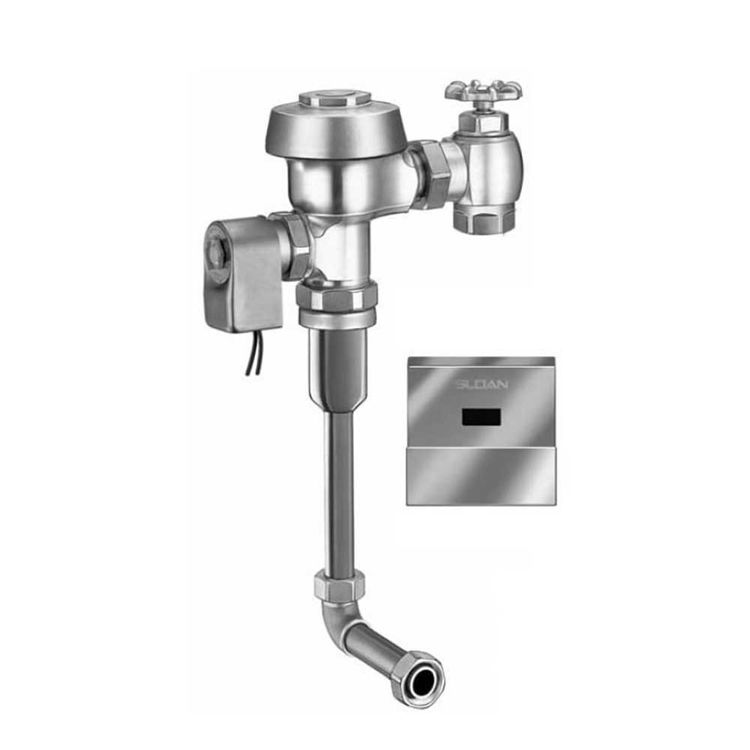

Sloan Royal 195 is a Concealed, Sensor Activated Royal Model Urinal Flushometer, for back spud urinals. 0. 25 Gpf, ADA Compliant. Adjustable from 2 3/4 In. to 10 3/4 In. center of valve to finished wall. Sloan Royal 195 is a Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer.

Product Details

Product: Medical
  Back Spud Flush Valve
Manufacturer: Sloan
Style: Billiard Table
  Sensor Operated
Faucet Features: ADA
Product Collection: Royal
Mpn # 3453266
Weight 8.90 lbs.

Product Features

  • 2-3/4" 10-3/4" L Dimension
  • 0.25 gpf (1.0 Lpf)
  • Quiet, Concealed, Diaphragm Type or Cartridge Assembly, Rough Brass Urinal Flushometer for either left or right hand supply
  • For Flushing Volumes 0.125 and 0.25: Dual Linear Filtered Bypass Diaphragm
  • For Flushing Volumes 0.5: Dual Filtered Bypass Diaphragm
  • OPTIMA EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
  • Non-Hold-Open Integral Solenoid Operator
  • Chrome Plated Wall Cover Plate (for 2-gang Electrical Box) with Vandal Resistant Screws
  • 3/4" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection and Spud Coupling for 3/4" Concealed Rear Spud
  • Sweat Solder Adapter
  • Chrome Plated Exposed Flushometer Parts
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
