About the Sloan Royal 320-1.0 Exposed Manual Specialty Urinal Foot Pedal Flushometer (3913981)

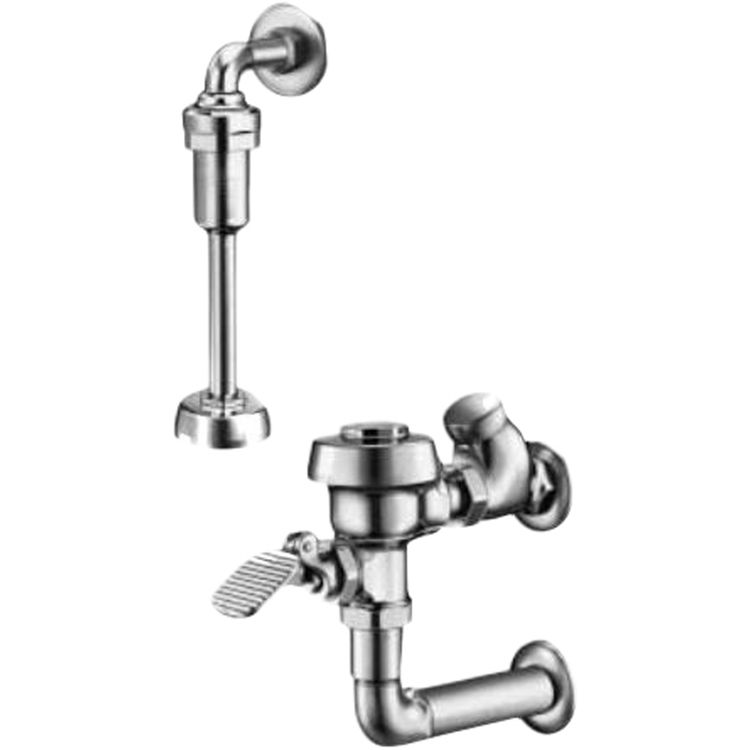

Sloam Royal 320 is an Exposed Urinal Foot Pedal Flushometer, for 3/4" top spud urinals. 1.0 GPF. Sloan Royal 320 is a Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer.

Product: Top Spud Flush Valve
Manufacturer: Sloan
Style: Pedal Flush
Mount Type: Wall Mount
Product Collection: Royal
Mpn # 3913981
Weight 9.46 lbs.
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Metal Non-Hold-Open Foot Pedal with Triple Seal Handle Packing
  • 1" I.P.S. Screwdriver Bak-Chek? Straight Stop
  • Free Spinning Vandal Resistant Stop Cap
  • Ground Joint Tailpiece
  • 1" Female I.P.S. Union Outlet
  • 1" I.P.S. Street Elbow, Casing and Wall Flange to cover 1? pipe
  • 3/4? Elbow Flush Connection, Spud Coupling, and Flanges from finished wall to 3/4 Exposed Top Spud
  • High Back Pressure Vacuum Breaker with One-piece Bottom Hex Coupling Nut
  • Sweat Solder Adapter and Cast Set Screw Wall Flange
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Foot Pedal, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
