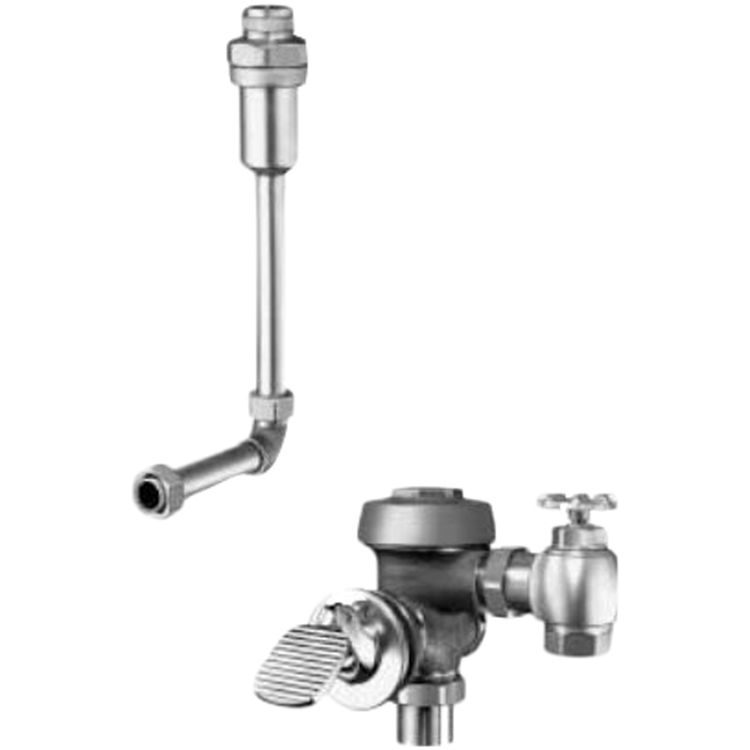

Sloan 3014010 Sloan Royal 323-1.5-3-3/4-LDIM Exposed Manual Specialty Urinal Foot Pedal Flushometer (3014010)
View 2 of Sloan 3014010 Sloan Royal 323-1.5-3-3/4-LDIM Exposed Manual Specialty Urinal Foot Pedal Flushometer (3014010)
View 3 of Sloan 3014010 Sloan Royal 323-1.5-3-3/4-LDIM Exposed Manual Specialty Urinal Foot Pedal Flushometer (3014010)

Product Options

Sloan Royal 323-1.5-3-3/4-LDIM Exposed Manual Specialty Urinal Foot Pedal Flushometer (3014010)

SKU: 93730
Manufacturer Image
-35.0%
$ 615 .49 / ea
$ 946 .90 / ea
visa mastercard american-express discover paypal crypto
local_shipping Free Shipping
Qty
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Available to Ship in 2-3 weeks
factory Orders from the Manufacturer

About the Sloan Royal 323-1.5-3-3/4-LDIM Exposed Manual Specialty Urinal Foot Pedal Flushometer (3014010)

Sloan Royal 323 is a Concealed Urinal Foot Pedal Flushometer, for 3/4" concealed back spud urinals. 1.5 gpf. 3 3/4" from center of valve to finished wall. Sloan Royal 323 is a Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply.Specification Sheet

Product: Medical
  Back Spud Flush Valve
Manufacturer: Sloan
Style: Watering Wand
  Pedal Flush
Product Collection: Royal
Mpn # 3014010
Weight 8.76 lbs.
  • 3-3/4" L Dimension
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Metal Non-Hold-Open Foot Pedal with Triple Seal Handle Packing
  • 3/4? I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • 3/4? Female I.P.S. Union Outlet
  • 3/4? Female Inlet Adapter, Elbow Flush Connection and Spud Coupling for 3/4 Concealed Back Spud
  • Sweat Solder Adapter
  • Exposed Parts Chrome Plated
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Foot Pedal, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
