Sloan Royal 609 ESM Urinal Flush Valve 3918742

SKU: 93750

Save 35% · Retail: $532.90

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 3918742

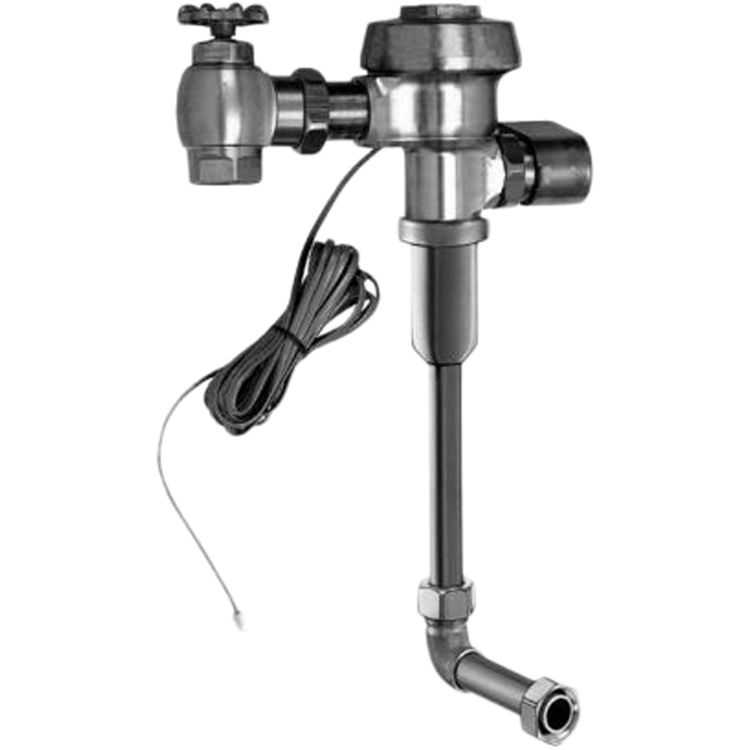

Sloan Royal 609 is a Concealed Urinal Flushometer, for 1 back Inlet urinals. 3. 5 Gpf. Sloan Royal 609 is a Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply. Specify the L Dimension for the proper length of the Actuator Assembly. The L Dimension is equal to the Wall Thickness (to the nearest whole).

Product Details

Product: Back Spud Flush Valve
Manufacturer: Sloan
Style: Prison Model
Faucet Features: ADA
Mpn # 3918742
Weight 8.03 lbs.

Product Features

  • PERMEX? Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Metal Direct Acting, Non-Hold-Open Chrome Plate Push Button with a Triple Seal Handle Packing, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • 1" I.P.S. Wheel Handle Bak-Chek? Angle Stop, Adjustable Tailpiece, Sweat Solder Adapter
  • High Back Pressure Vacuum Breaker
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX? Rubber Compound for Chloramine Resistance
  • Elbow Flush Connection and Coupling for 1?" NPT Back Inlet Urinals (for connection in the pipe chase ? flush connection through the wall not provided by Sloan)
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Flush Accuracy Controlled by CID? Technology
  • 100% of the energy used in manufacturing is offset with Renewable Energy Sources ? Wind Energy
