Sloan Royal 986-1 - Hydraulic Urinal Flushometer

SKU: 93782

Save 35% · Retail: $342.70

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 3912692

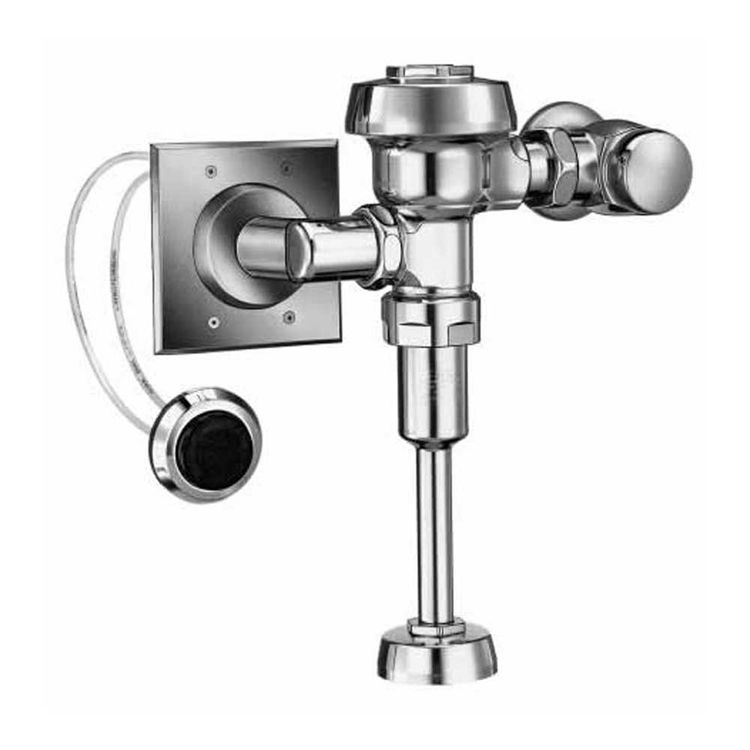

Sloan Royal 986 is an Exposed Hydraulically Operated Urinal Flushometer, for 3/4" top spud urinals. 1.0 gpf. ADA Compliant. Sloan Royal 986 is a Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer.

Product Details

Product: Top Spud Flush Valve
Manufacturer: Sloan
Style: Hydraulic
Color: Chrome
Faucet Features: ADA
Mpn # 3912692
Weight 7.93 lbs.

Product Features

  • 11-1/2" Rough-In
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
  • Dual Filtered By-pass
  • ADA Compliant Non-Hold-Open feature type Actuator (specify Actuator type listed below)
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX rubber compound for Chloramine resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
