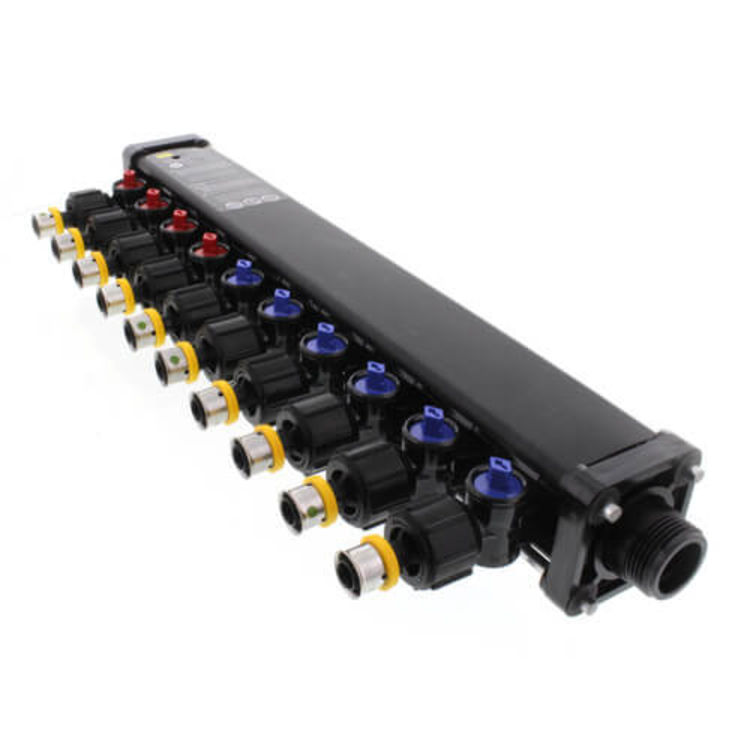

Viega 49410 10-Port MiniBloc 1/2" PEX Press PolyAlloy Dual Manifold, (4) Hot & (6) Cold

SKU: 518351

$115.82/ea
Save 46% · Retail: $216.46

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$115.82/ea

About the Viega 49410

The Viega 49410 MiniBloc is a 10-port 1/2" PEX Press manifold. It features MiniBloc sections for added versatility and is made of high-quality materials designed to be highly resistant to hot temperatures and chemicals that are commonly found in potable water systems. Corrosion-resistant metals provide added durability and lengthen the MiniBloc's service life without the need for constant part replacement.

This Viega MiniBloc uses 1/2" PEX press connection for quick and easy installation and is also designed to be used with the ViegaPEX Ultra and Viega FostaPEX tubing and connection for optimal performance.  It is lead-free for potable water use and is designed with a max pressure rating of 100 PSI at 180 degrees Fahrenheit. The port or branch has a pressure drop of 3.4 PSI at 4.0 GPM for the 1/2" PEX. This MiniBloc is designed for home and commercial applications and is ideal for zoning multiple outlets for added safety and efficiency.

Viega is a company that designs and manufactures plumbing- and material-related products that are driven by quality, integrated with both proven and innovative technology. PlumbersStock offers a wide range of products from Viega from fittings to manifolds. If you want quality and longevity, you will not go wrong with Viega.


Product Details

Manufacturer: Viega
Product: Manifold
Connection Type: Compression
Color: Black
Size: 1/2"
Mpn # 49410
Weight 4.81 lbs.

Product Features

  • Total Ports (Branches): 10 (4 hot & 6 cold)
  • Port Connections: 1/2" PEX Press
  • Hot/Cold Water Inlet Connections: 1" (manabloc adapters required)
  • Branch spacing: 1-11/16" OC (On Center)
  • Dimensions (L x H x W): 19.95" x 2-1/2" x 4-3/8"
  • Max Pressure Rating: 100 psi @ 180F
  • Port (Branch) Pressure Drop: 3.4 psi @ 4.0 GPM
  • Port K-Factor: 0.21 (for 1/2" PEX)
  • Lead-free, approved for potable water use
  • Meets NSF/ANSI 61 & 372, ASTM F876/F877, CSA B137.5
  • UPC-IAPMO Certified
  • Made in the USA.
