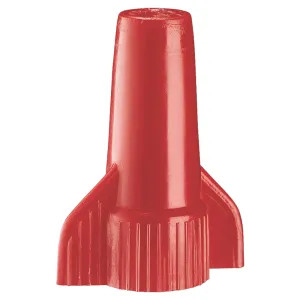

WingGard 10-086 Twist-On Wire Connector, 22 - 6 AWG, 300 V, 600 V, Thermoplastic, Red

Name: WingGard 10-086 Twist-On Wire Connector, 22 - 6 AWG, 300 V, 600 V, Thermoplastic, Red
Brand: Gardner Bender
SKU: 588466
Price: 10.01 USD
Availability: InStock

SKU: 588466

$ 10.01 / ea

Save 32% · Retail: $14.76

Available to Ship in 4-5 weeks

Ships From	Price	Qty
Austin Texas Warehouse Ships in 5-7 Days	$11.32/ea	109
Sikeston Missouri Warehouse Ships in 5-7 Days	$11.32/ea	221
Order From Manufacturer Available to Ship in 4-5 weeks	$10.01/ea	∞

About the Gardner Bender 10-086

About the WingGard 10-086 Twist-On Wire Connector, 22 - 6 AWG, 300 V, 600 V, Thermoplastic, Red

WingGard 10-086 Twist-On Wire Connector, 22 - 6 AWG, 300 V, 600 V, Thermoplastic, Red

Product Details

Manufacturer:	Gardner Bender
Color:	Red
Mpn #	10-086
Shipping Dimensions	18.3" x 5.3" x 6.4"
Weight	1.29 lbs.
Shipping Dimensional Weight	3.54 lbs.

Product Features

Type: Twist-On
Conductor Size: 22 - 6 AWG
Conductor Material: Copper/Copper
Material: Thermoplastic
Voltage Rating: 300 V, 600 V
Connection Type: Screw-On
Standards: cULus Listed
Temperature Rating: 221 deg F
Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
Square-wire plated spring instantly adjusts to the shape and size of the splice
Flame-retardant properties resist heat distortion up to 105 deg C
High-dielectric shell deep skirt design to prevent exposure of bare wire
Copper-to-copper connections only

WingGard 10-086 Twist-On Wire Connector, 22 - 6 AWG, 300 V, 600 V, Thermoplastic, Red

About the Gardner Bender 10-086

About the WingGard 10-086 Twist-On Wire Connector, 22 - 6 AWG, 300 V, 600 V, Thermoplastic, Red

Product Details

Product Features
