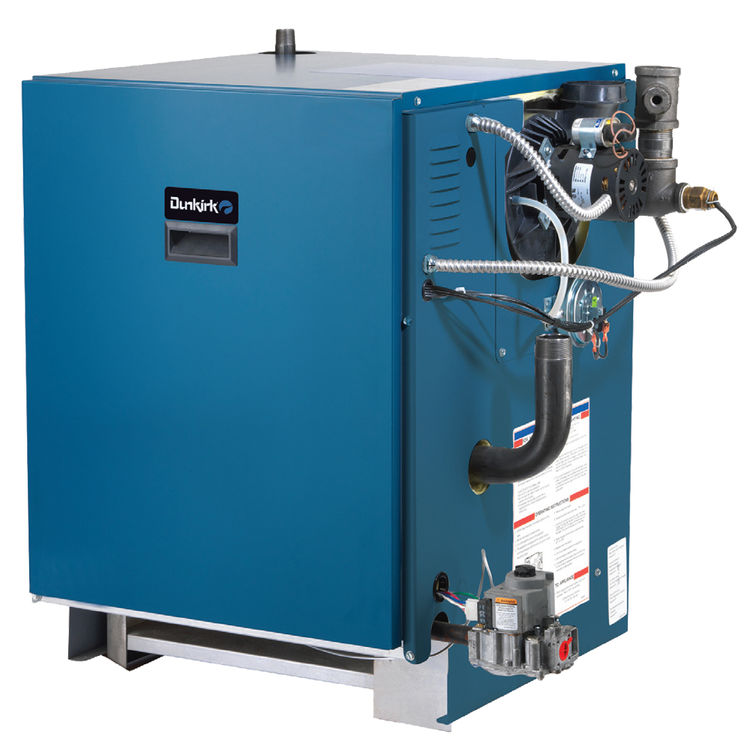

Save on the Dunkirk XEB-7 Chimney/Sidewall-Vented Boiler from the XEB Series II (225 Input MBH, 186 Heating Capacity MBH, 165 AHRI Net MBH, XEB722503130203) at PlumbersStock. This cast iron hot water boiler operates with natural gas fuel and an AFUE rating of 82%. It requires a 4" flue or sidewall.
Alcove design is three sided space with no wall in front of boiler. ANSI standard is 18 inches from appliance to leading edge of side walls. Return water supply is 1-1/4-inch NPT and the gas inline is 1/2-inch NPT. It operates on 120 volts AC, 60 hertz, 1 phase at less than 12 amps. This model includes a Bell and Gossett Pump.
** Due to this product's considerable weight and size our current shipping costs could fluctuate. Please call 435-868-4020 for today's shipping rates.
| Manufacturer: | Dunkirk |
| Product: | Boiler |
| Color: | Blue |
| Electrical Voltage: | 120VAC, 60Hz |
| Capacity: | 8 Gallons |
| Connection Size: | 1/2" |
| Connection Type: | NPT |
| Modus Operandi: | Natural Gas |
| Height: | 29" |
| Width: | 27-1/4" |
| Depth: | 23-1/4" |
| BTU Rate: | 225,000 BTU |
| Other Info: | Bell and Gossett Pump Included |
| ASME Certified | |
| AHRI certified | |
| Material: | Cast iron |
| Mount Type: | Floor Mount |
| Water Connection: | 1-1/4" NPT |
| Amperage: | 15 amps |
| Mpn # | XEB722503130203 |
| Weight | 460.00 lbs. |
