Greenlee 560XL Fiber Optic Power Meter

SKU: 273610

$759.94/ea
Save 10% · Retail: $840.20

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$759.94/ea

About the Greenlee 560XL

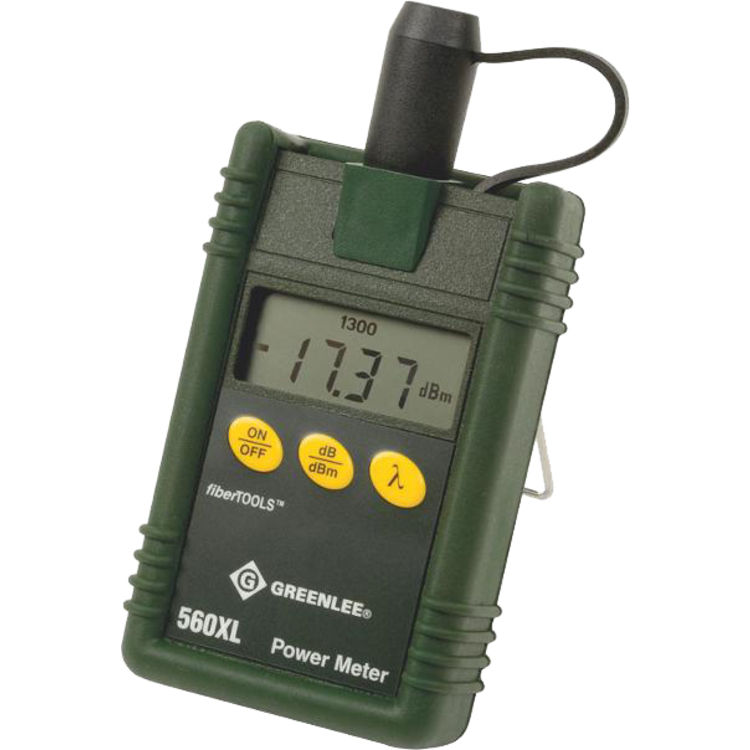

The Greenlee 560XL Fiber Optic Power Meter is part of Greenlee's premium collection of tools and accessories. This fiber optic power meter is designed with an easy-to-use 3 button control for all of it's functions, and a .01 measurement resolution. It features multi-wavelength storage to store and recall reference power levels for faster, more efficient measurements. It features a snap-on connector interface that adapts to FC, SC, and ST connectors, a long battery life, a user selectable auto-off function, and a rugged splash-proof style that prevents damage to the meter.

Product Details

Product: Specialty Tools
Manufacturer: Greenlee
Use: Testing
Style: Multi Meter
Mpn # 560XL
Weight 0.93 lbs.

Product Features

  • Easy to use - three buttonscontrol all functions
  • Economically priced
  • Accuracy : Plus Or Minus 0.25 DB
  • Calibration Wavelengths : 850 NM, 1300 NM, 1310 NM And 1550 NM
  • CE : EN61010 EN50081-1: 1992 EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3,-4
  • Connector interface : FC, SC Or ST SOC Adapter
  • Dimensions : 7.200 CM X 14.200 CM X 3.500 CM (2.800 IN X 5.600 IN X 1.400 IN)
  • Humidity : 0 To 95 PCT Non-Condensing
  • Linearity : Plus Or Minus 0.5 DB For +3 DBM To -3 DBM, Plus Or Minus 0.05 DB For -3 DBM To -50 DBM, Plus Or Minus 0.5 DB For -50 DBM To -60 DBM
  • Power Range : +3 DBM To -60 DBM
  • Power Requirements : Two AA Size 1.5 V Batteries (Approximately 100 Hours Continuous Operation)
  • Loss measurements in (DB)
  • Resolution : 0.01 DB
  • Standard : CE - EN61010 EN50081-1: 1992 EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3,-4
  • Storage/Operating Temperature : -15 DEG C To +55 DEG C-35 DEG C To +70 DEG C
  • Type : Fiber Optic
  • Weight : 241.000 GM (8.500 OZ)
  • power measurements in (DBM)
  • 0.01 DB measurement resolution
  • Multi-wavelength storage -store and recall reference power levels for faster, more efficient measurements
  • Snap-On connector interface adapts to FC, SC and ST connectors
  • Long battery life
  • User selectable auto shut-off
  • Rugged and splash-proof
