Greenlee 568XL Fiber Optic Power Meter

SKU: 273632

$1,115.33/ea
 Free Shipping!
Save 10% · Retail: $1,238.15

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$1,115.33/ea

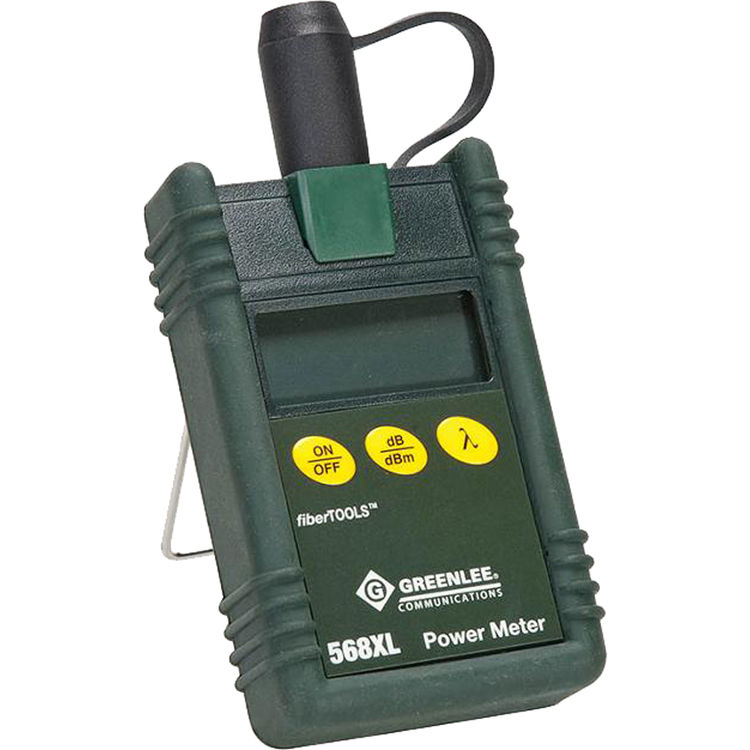

About the Greenlee 568XL

The Greenlee 568XL Fiber Optic Power Meter is part of Greenlee's premium collection of tools and accessories. This fiber optic power meter is designed with an easy-to-use 3 button control for all of it's functions, and a .01 measurement resolution. It features multi-wavelength storage to store and recall reference power levels for faster, more efficient measurements. It features a snap-on connector interface that adapts to FC, SC, and ST connectors, a long battery life, a user selectable auto-off function, and a rugged splash-proof style that prevents damage to the meter.

Product Details

Product: Specialty Tools
Manufacturer: Greenlee
Use: Testing
Style: Multi Meter
Mpn # 568XL
Weight 0.12 lbs.

Product Features

  • Easy to use - three buttons control all functions
  • Accuracy : +/- 0.25 DB At Calibration Conditions
  • Calibration Wavelengths : 980, 1310 And 1550
  • Connector interface : SOC
  • Detector Type : 2 MM Indium-Arsenide (InGaAs)
  • Dimensions : 2.8 (7.2 CM) Length X 1.4 (3.5 CM) Width X 5.6 (14.2 CM) Height
  • Humidity : 0 To 95 PCT Non-Condensing
  • Linearity : 25 To 22 DBM (+/- 1 DB), 22 To 18 DBM (+/- 0.5 DB), 18 To 10 DBM (+/- 0.2 DB), 10 To -30 DBM (+/- 0.05 DB) At 1310 And 1550 NMTR
  • Operating Temperature : -15 To 55
  • Polarization Dependence : Less Than 0.1 DB
  • Power Range : 25 To -27 DBM For 980 NMTR, 25 TO -30 DBM FOR 1310 AND 1550NMTR
  • Multi-wavelength storage: Store and recall reference power levels for faster, more efficient measurements
  • Power Supply : (2) 1.5 V AA Size Battery
  • Resolution : +/- 0.01 DB
  • Standard : CE - EN61010 EN50081-1: 1992 EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3,-4
  • Storage Temperature : -35 To 70
  • Sub Brand : fiberTOOLS
  • Type : XL Series, High Intensity Optic
  • Wavelength Dependence : 975 - 985 NMTR At 0.025 DB/NMTR
  • Weight : 241 GM (8.5 OZ)
  • Loss measurements in (DB)
  • Power measurements in (DBM)
  • Snap on connector interface adapts to FC, SC and ST connectors
  • Long battery life
  • User selectable auto shut-off
  • Rugged and splash-proof
  • Economically priced
