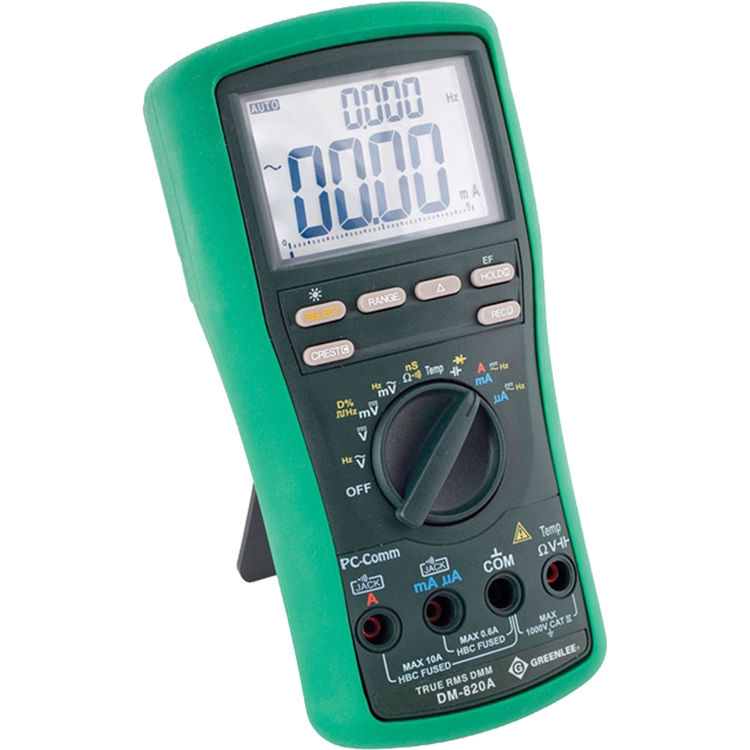

Greenlee DM-820A-C True RMS Digital Multi-Meter (AC/DC)(calibrated)

SKU: 274421
Save 30% · Retail: $371.17

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Greenlee DM-820A-C

The Greenlee DM-820A-C True RMS Digital Multi-Meter (AC/DC)(calibrated) is part of Greenlee's premium collection of tools and accessories. This digital multi-meter is designed to measure voltage, current, capacitance, resistance, and frequency. It also tests continuity and diodes, and comes with a backlit LCD with 10,000 count display, 2 voltage detection modes, and a BeepJack that warns when test leads are incorrectly inserted in current measurement terminals. It has manual and automatic range selections, a relative offset mode to see changes in the measurements, and an optional USB interface DMSC-9U for direct-to-PC logging. This model comes with a 9v battery, bead temperature probe, test leads, a protective boot, and a carrying case.

Product Details

Product: Specialty Tools
Manufacturer: Greenlee
Use: Testing
Type: Electric
Style: Multi Meter
Mpn # DM-820A-C
Weight 0.12 lbs.

Product Features

  • True RMS For No-Compromise Accuracy
  • Lifetime Limited Warranty
  • Crest Capture (Peak Hold)Plus Recording Of Max, Min, Max-Min Average
  • Two Voltage Detection Modes - Non-Contact Or Using A Single Test Lead
  • One Temperature Measurement Using A Type K Thermocouple
  • Conductance Measurement
  • Accessories included: (1)9V battery, bead temperature probe (DM-820A, DM-830A only, 400 DEG F/204 DEG C max), testleads, protective boot, carrying case
  • Includes Certificate of Calibration
  • Amperage Measurement : 600, 6000 MICAMP, 60, 600 MILAMP, 6, 10 AMP
  • Battery : (1) 9 V
  • Capacitance : 60, 600 NFD, 6, 60, 600 MFD, 6, 25 MILFD
  • Measures Voltage, Current,Resistance, Capacitance And Frequency
  • Conductance : 99.99 nS
  • Display : Backlit LCD With Dual 10,000 Count
  • Frequency Measurement : 15 HZ - 50 KHZ Sine Wave, 5 HZ - 1 MHZ Logic Level Square Wave
  • Includes : (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400 DEG F/204 DEG C Max), Test Leads, Protective Boot, Carrying Case
  • Measurement Category : CAT IV, 1000 V
  • Replacement Part : TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A)
  • Resistance Measurement : 600 OHM, 6, 60, 600 KOHM, 6, 60 MOHM
  • Standard : CAT IV, C/UL US Listed, TRUE RMS, CE Listed
  • Temperature Rating : K Type, -58 To 1832 DEG F (-50 To 1000 DEG C)
  • Type : Digital
  • Tests Continuity And Diodes
  • Voltage Measurement : 60, 600 MILV, 9.999, 99.99, 999.9 V
  • Backlit LCD With Dual 10,000 Count Displays
  • BeepJack Warns When Test Leads Are Incorrectly Inserted In Current Measurement Terminals
  • Automatic And Manual RangeSelection
  • Relative Offset Mode To See Changes In Measurements
  • Data Hold
  • Use Optional USB InterfaceDMSC-9U For Direct-To-PC Logging
