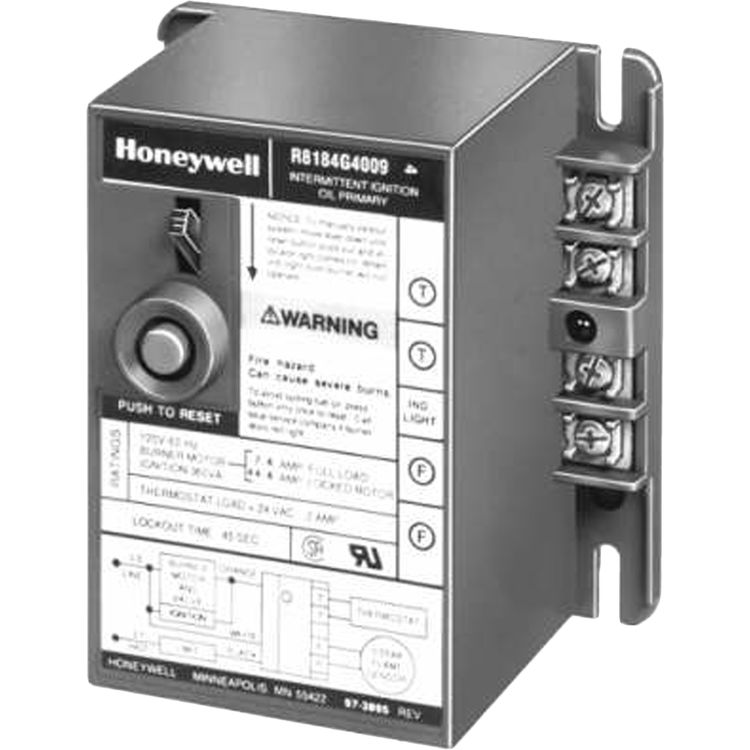

Honeywell R8184G4009 Protectorelay Oil Burner Control

SKU: 153302

Save 50% · Retail: $206.91

In Stock and Ready to Ship!

Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$104.27/ea 195
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Honeywell R8184G4009

Honeywell R8184G4009 Protectorelay Oil Burner Control. Control Provides automatic, non recycling control of an intermittent ignition oil burner system.

Product Details

Product: Controller
Manufacturer: Honeywell
Style: Parts
Mpn # R8184G4009
Weight 0.75 lbs.

Product Features

  • Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat.
  • Solid state flame sensing circuit.
  • LED on terminal strip indicates system lockout.
  • Remote lockout indication available on some models.
  • Enclosed safety switch with external reset button.
  • Manual trip lever opens safety switch for system maintenance.
  • Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing.
  • C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.


4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers


Hi, there! Thank you for taking interest in our Honeywell R8184G4009 oil burner control. There is a possibility that the wirings aren't completely connected or installed correctly. The first step is to retrace the installation procedure. You can use this installation manual as a reference regarding proper connections and usage. The typical hookup can be seen on page 2, figure 4. Hope this helps. Thank you and we hope to see you again at!
